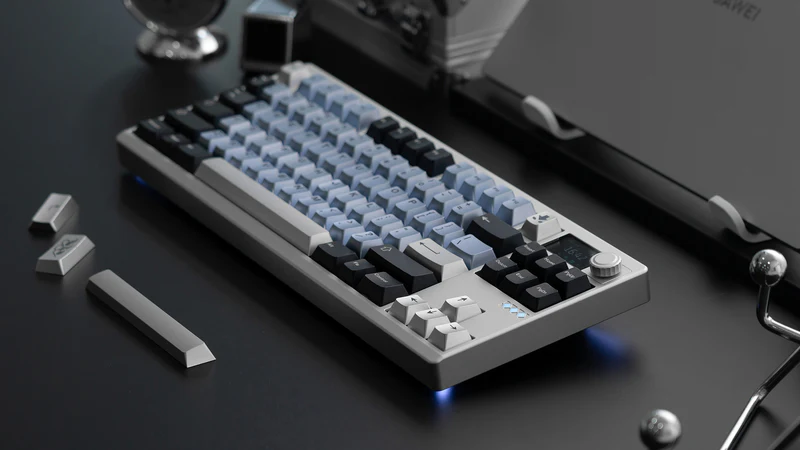

Meletrix ZOOM TKL DYNA Custom Keyboard Kit Cork Edition Strawberry Icecream
Meletrix ZOOM TKL DYNA
- The diamond-pattern grille lighting on the front perfectly complements the rear design, delivering futuristic aesthetics.

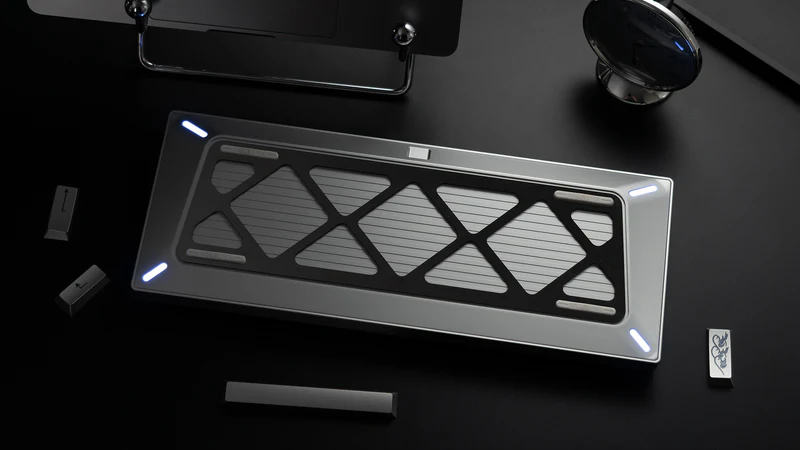

- The back retains TIGA series’ signature grille design, through multiple adjustments to retain a retro style while incorporating unique personality, with clean and orderly grid lines.
- The four-dimensional light domain at the bottom echoes the diamond-patterned ambient light on the top case, enabling unified control over effects and colors. In low-light settings, the dual illumination creates a dynamic “light warrior” effect.

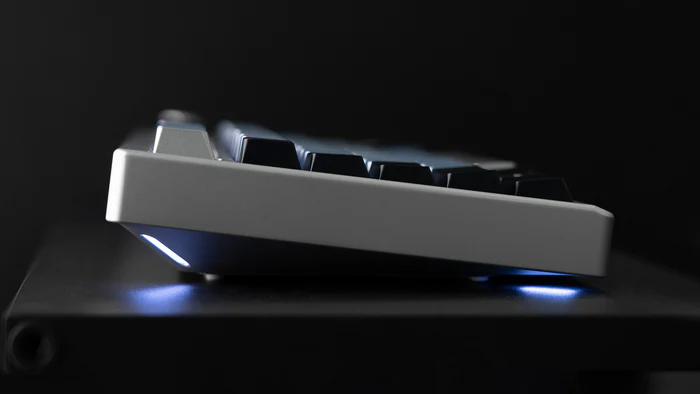

After 20+ optimizations based on user feedback, DYNA achieves a smooth-edged profile that enhances ergonomic comfort.
Sharply contrasts with the top case’s soft curves, amplifying visual hierarchy while achieving a sleeker profile.

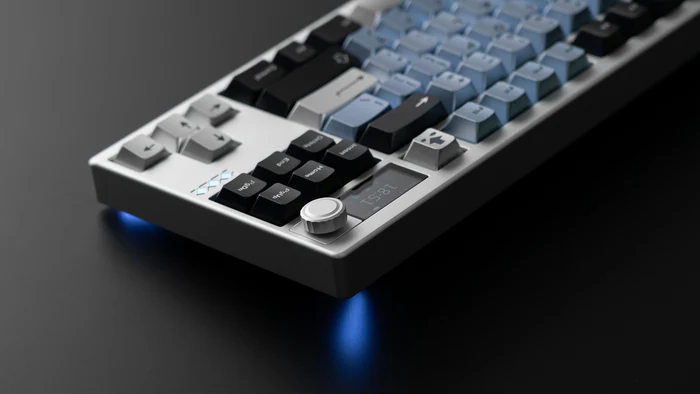

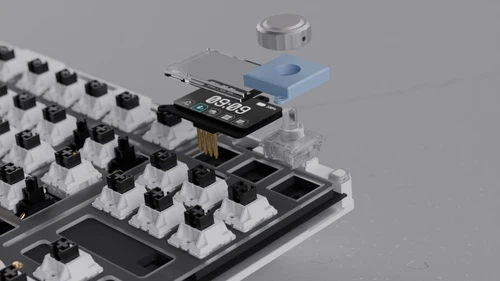

Upgraded Screen + Knob Combo
Our newly upgraded modular design features a pogo-pin-integrated screen and introduces innovative hot-swappable technology for the knob, eliminating the need for replacement modules to deliver a more seamless user experience. The knob’s ripple-textured surface not only ensures anti-slip grip but also enhances its futuristic aesthetic.
8K Polling Rate
DYNA adopts an 8K polling rate this time, with extremely low latency, measured at just 0.6ms (tested), ensuring a better gaming experience in FPS games. In the future, we will also launch a magnetic switch edition in collaboration with Star Flash, bringing the latest magnetic switch solution.

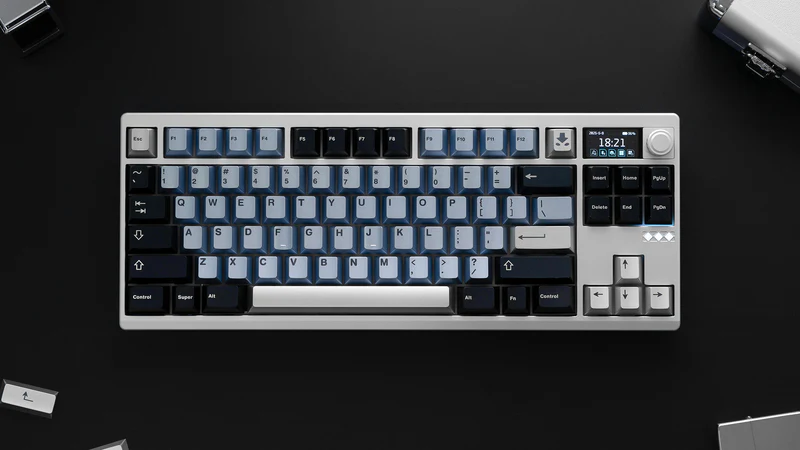

One Keyboard, Infinite Configurations
DYNA shatters limits with flexible screen/knob layouts:
Full Keys (No Screen/Knob)

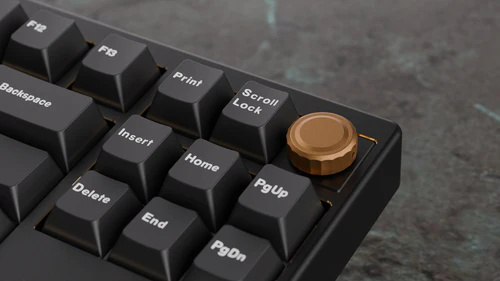

Knob + Two-keys

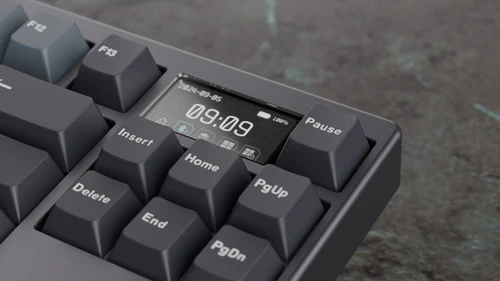

Screen + Single Key
Premium Acoustic & Tactile Experience
The design of DYNA fully carries forward the advantages of TIGA, ensuring optimal performance in both sound and tactile feedback to meet the preferences of different users.

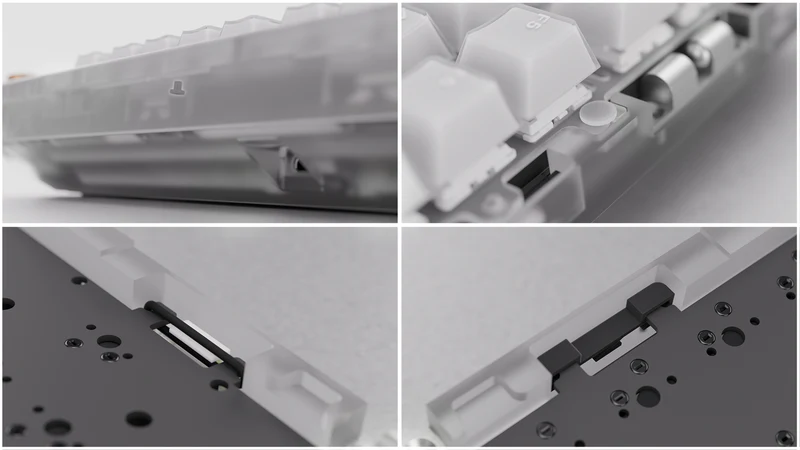

4 Mounting Systems
Top Mounting
Split O-Ring Mounting
Elastic Bar Silicone Mounting
Silica Gel Particle Mounting

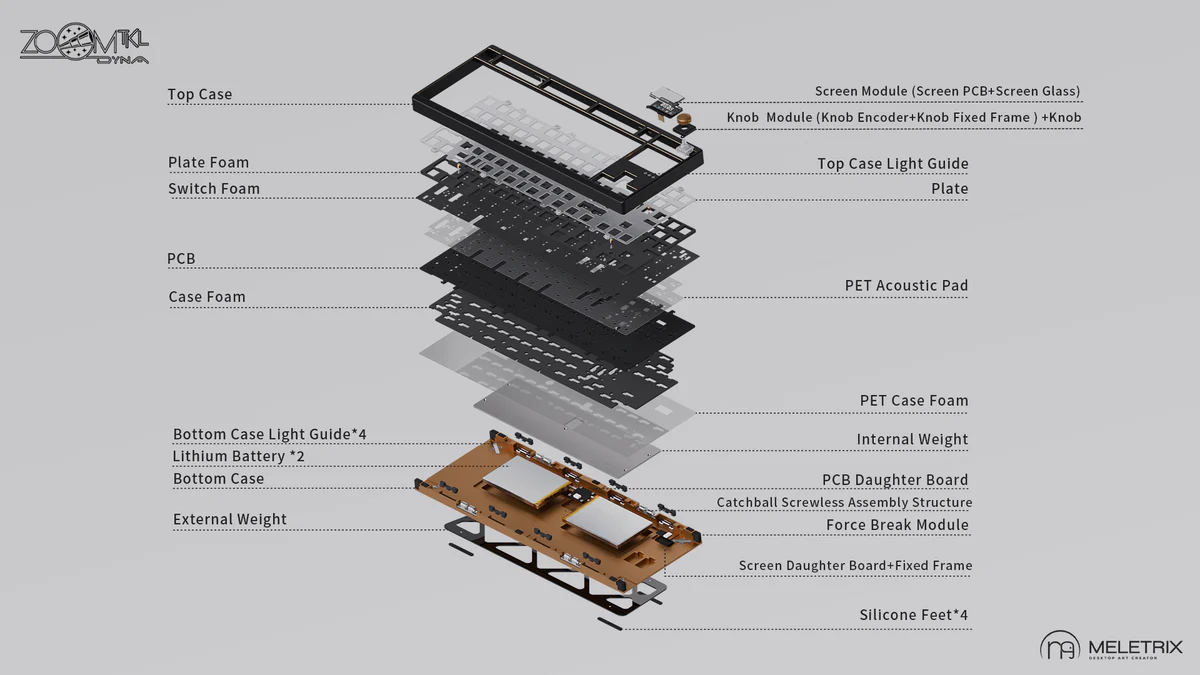

Exploded View

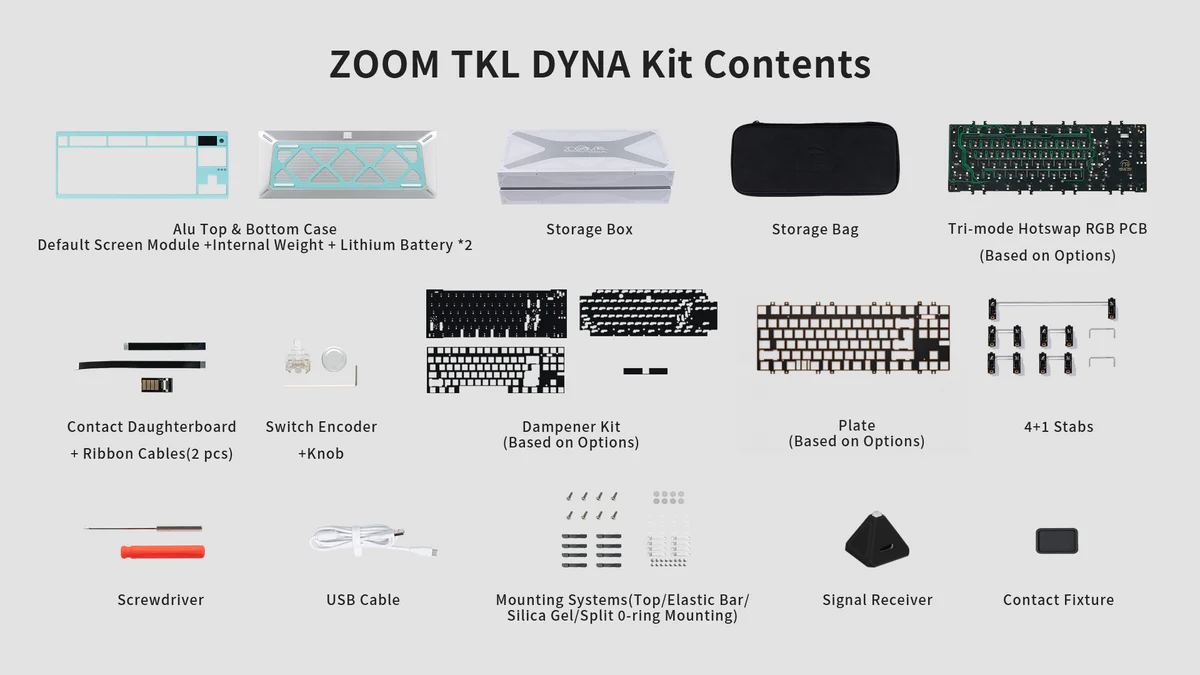

What's in the box
| General Information | |
| Description | Meletrix ZOOM TKL DYNA Custom Keyboard Kit, Cork Edition, Strawberry Icecream |
| Color | Strawberry Icecream |
| Features | Case: Strawberry Icecream Hotswap PCB Type: 1.2mm Flex Cut Plate: FR4 Sound Dampener: Cork Edition |
| Specifications | |
| Keyboard Layout | 80% |
| Finish Treatment | Anodized/Acustatic/Electrophoresis |
| Typing Angle | 6.7° |
| Front Height | 18mm |
| Case Material | 6063 Aluminum |
| Mounting System | Top MountingSplit ; O-Ring MountingElastic ; Bar Silicone Mounting ; Silica Gel Particle Mounting |
| PCB | 1.2mm Tri-mode |
| Battery Capacity | 4000mAh*2 |
| Plate | FR4 |
| Connection Methods | USB/BLE/2.4G |
| Latency Data (wireless and wired) | USB：0.6ms BLE：8ms 2.4G：1.1ms |
| Bluetooth Version | BLE5.4 |
| Bluetooth PCB Polling Rate | 133Hz |
| 2.4GHz Polling Rate | 4000Hz |
| Wired Polling Rate | 8000Hz |
| Supported Layouts | ANSI, ISO |
| VIA Support | Yes |
| RGB Support | Yes |
| Hotswap Support | Yes |
| OS Compatibility | Win/Mac/Linux/Android |
| Dimensions | 356.5*139*34.2mm |
