ASUS ROG STRIX Z890-I GAMING WIFI Z890 Motherboard mini ITX - LGA1851 Socket - Z890 Chipset - USB4 USB-C 3.2 Gen 2x2 USB 3.2 Gen
Model #: ROG STRIX Z890-I GAMING WIFI
Item #: MOTASUZ89IGR
x
Special Order
These items are not immediately available for pickup at our stores.
We can ship these products to our stores for free in-store pickup.
Items usually arrive at the store within 2 to 7 business days.
ASUS ROG STRIX Z890-I GAMING WIFI Z890 Motherboard mini ITX - LGA1851 Socket - Z890 Chipset - USB4 USB-C 3.2 Gen 2x2 USB 3.2 Gen
$439.99
| Specifications | |
|---|---|
| Model | ROG STRIX Z890-I GAMING WIFI |
| CPU | Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z890 Chipset |
| Memory | 2 × DIMM slots, Max. 128GB, DDR5 Supports up to 9200+ MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual Channel Memory Architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) Supports DIMM Flex ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. Refer to CPU/Memory Support list or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 × HDMI™ port 2 × Intel® Thunderbolt™ 4 ports (USB Type-C®) — supports DisplayPort and Thunderbolt™ video outputs * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** HDMI 2.1 supports 4K@60Hz. *** Thunderbolt™ 4 mode supports up to 8K@60Hz ×1 with DSC or 4K@60Hz ×2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps. In DP Alt mode, only one USB Type-C® port supports up to UHBR20 at a time. For resolution support please check DisplayPort 2.1 specs. **** VGA resolution support depends on processors' or graphic cards' resolution. ***** While installing the operating system, please ensure your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2): 1 × PCIe 5.0 x16 slot (supports x16 mode) * Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. * Refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Storage | Total: 2 × M.2 slots + 2 × SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2): M.2_1 (Key M), type 2230/2242/2260/2280 — PCIe 5.0 x4 M.2_2 (Key M), type 2230/2242/2260/2280 — PCIe 5.0 x4 2 × SATA 6Gb/s ports Intel® RST: PCIe RAID 0/1; SATA RAID 0/1 ** M.2_2 slot shares bandwidth with PCIEX16(G5). When M.2_2 slot is occupied, PCIEX16(G5) will run x8 only. *** Install ROG FPS Card to support 2 × SATA 6Gb/s ports. |
| Ethernet | 1 × Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), 2×2, supports 2.4/5/6GHz, 320MHz bandwidth, up to 5.8Gbps Bluetooth® v5.4 * Wi-Fi features may vary depending on the operating system. Windows 11 24H2 or later required for full Wi-Fi 7; Windows 11 21H2/22H2/23H2 supports Wi-Fi 6E only. Windows 10 supports Wi-Fi 6 only. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** Bluetooth version may vary; refer to Wi-Fi module manufacturer's website for latest specifications. |
| USB — Rear (9 ports) | 2 × Thunderbolt™ 4 (2 × Type-C®) 1 × USB 20Gbps (1 × Type-C®) 3 × USB 10Gbps (3 × Type-A) 1 × USB 5Gbps (1 × Type-A) 2 × USB 2.0 (2 × Type-A) * USB Type-C® power delivery output: max. 5V/3A. |
| USB — Front (3 ports) | 1 × USB 20Gbps connector (supports USB Type-C®) 1 × USB 5Gbps header (2 additional USB 5Gbps ports) |
| USB — ROG STRIX HIVE II (2 ports) | 2 × USB 10Gbps (1 × Type-C® + 1 × Type-A) |
| USB — ROG FPS Card (3 ports) | 2 × USB 2.0 headers (3 additional USB 2.0 ports) |
| Audio | ROG STRIX HIVE II audio features: ROG Hyper-Grounding Technology ESS® SABRE9260Q DAC Silver-plated audio jacks Dedicated audio PCB layers * All audio functions on ROG STRIX Z890-I GAMING WIFI are supported through the ROG STRIX HIVE II. |
| Back Panel I/O | 2 × Thunderbolt™ 4 (2 × Type-C®) 1 × USB 20Gbps (1 × Type-C®) 3 × USB 10Gbps (3 × Type-A) 1 × USB 5Gbps (1 × Type-A) 2 × USB 2.0 (2 × Type-A) 1 × HDMI™ port 1 × Wi-Fi module 1 × Intel® 2.5Gb Ethernet port 1 × BIOS FlashBack™ button |
| Internal I/O — Fan & Cooling | 1 × 4-pin CPU Fan header 1 × 4-pin AIO Pump header 1 × 4-pin Chassis Fan header 1 × Extra Flow Fan header |
| Internal I/O — Power | 1 × 24-pin Main Power connector 1 × 8-pin +12V CPU Power connector |
| Internal I/O — Storage | 2 × M.2 slots (Key M) |
| Internal I/O — USB | 1 × USB 20Gbps connector (supports USB Type-C®) 1 × USB 5Gbps header (2 additional ports) 2 × USB Type-C® connectors to install ROG FPS card |
| Internal I/O — Miscellaneous | 2 × Addressable Gen 2 headers 1 × 2-pin Power Button header 1 × Thermal Sensor header |
| Internal I/O — ROG FPS Card | 2 × SATA 6Gb/s ports 1 × CPU Overvoltage jumper 1 × Clear CMOS header 1 × Front Panel header 1 × Alteration PCIe Mode switch 2 × USB 2.0 headers (3 additional USB 2.0 ports) |
| Special Features | Extreme Engine Digi+: 5K Black Metallic Capacitors Q-Design: M.2 Q-Release Duo, PCIe Slot Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Dashboard, Q-DIMM, Q-Slot Thermal Solution: M.2 heatsink backplate, M.2 heatsink, VRM heatsink design, Fan bracket EZ DIY: BIOS FlashBack™ button/LED, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeDIMM, Backplate Aura Sync: Addressable Gen 2 headers ROG STRIX HIVE II: 1 × USB Type-C® connection to motherboard, 2 × USB 10Gbps (1 × Type-C® + 1 × Type-A), 1 × Headphone jack with mic in, 1 × FlexKey button, 1 × Power button, 1 × Volume control knob with mute button, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| Software | ROG Exclusive: ROG CPU-Z, Dolby Atmos Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II, GameFirst, Power Saving) HWiNFO / AIDA64 Extreme (60 days free trial) / ASUS AI Advisor / ASUS DriverHub / ASUS GlideX UEFI BIOS: AI Overclocking Guide, ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, NPU Boost |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

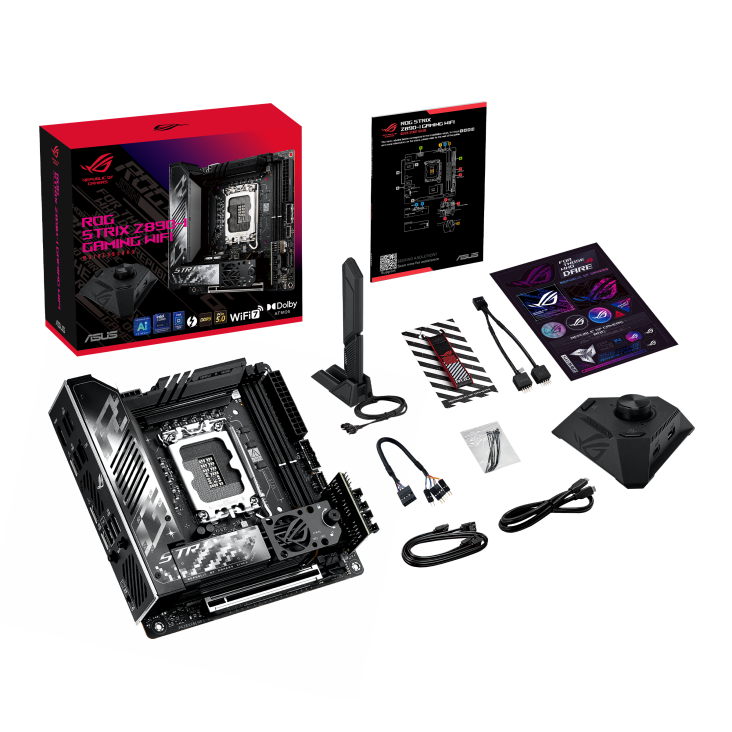

| Accessories | 1 × ROG USB 2.0 splitter cable 2 × SATA 6Gb/s cables 1 × Panel Cable 1 × ROG FPS Card 1 × ROG STRIX HIVE II 1 × USB Type-C® power connection cable 1 × ASUS WiFi Q-Antenna 1 × Cable ties package 1 × ROG key chain 1 × ROG Strix stickers 1 × Quick start guide |
| Operating System | Windows® 11 (22H2 & later) |
| Form Factor | Mini-ITX 6.7 in. × 6.7 in. (17 cm × 17 cm) |
