ASUS ROG STRIX X870E-E GAMING WIFI ATX AM5 Motherboard Ryzen 9000/7000 Socket AM5 LGA 17184 4x DDR5 DIMM 1x PCIe 5.0 x16 1x PCIe
Model #: ROG STRIX X870E-E GAMING WIFI
Item #: MOTASUX87EGR
(view)
x
- Store inventory
-
837 Howard Street, CA 94103
415-495-58882 -
2727 S. El Camino Real, CA 94403
650-345-58881 -
510 Lawrence Expressway, Suite 107, CA 94085
650-964-58885 -
3777 Stevens Creek Blvd., CA 95051
408-248-58884 -
5990 Mowry Ave., CA 94560
510-792-58882 -
Disclaimer: Inventory accuracy is not guaranteed. We can do transfers between stores or special order for your convenience.
ASUS ROG STRIX X870E-E GAMING WIFI ATX AM5 Motherboard Ryzen 9000/7000 Socket AM5 LGA 17184 4x DDR5 DIMM 1x PCIe 5.0 x16 1x PCIe
$479.99
| Specifications | |
|---|---|
| Model | ROG STRIX X870E-E GAMING WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset | AMD X870E |
| Memory | 4 × DIMM slots, Max. 256GB, DDR5 Supports up to 8000+ MT/s (OC) with Ryzen™ 9000 Series Supports up to 8400+ MT/s (OC) with Ryzen™ 8000 Series Supports up to 8000+ MT/s (OC) with Ryzen™ 7000 Series ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate, and number of DRAM modules vary depending on CPU and memory configuration. Refer to CPU/Memory Support list or visit https://www.asus.com/support/download-center/. * Non-ECC, Un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 × HDMI™ port 2 × USB4® (40Gbps) ports support USB Type-C® display outputs * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** HDMI 2.1 supports max. 4K@60Hz. *** USB4® display outputs support max. 4K@60Hz as specified in DisplayPort 1.4a. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 1 × PCIe 5.0 x16 slot (supports x16 mode) Ryzen™ 8000 Series: 1 × PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870E Chipset: 1 × PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. ** Specifications vary by CPU types. Refer to https://www.asus.com/support/ for supported peripherals. |
| Storage | Total: 5 × M.2 slots + 4 × SATA 6Gb/s ports Ryzen™ 9000 & 7000 Series: M.2_1 (Key M), type 2242/2260/2280 — PCIe 5.0 x4 M.2_2 (Key M), type 2242/2260/2280 — PCIe 5.0 x4 M.2_3 (Key M), type 2242/2260/2280/22110 — PCIe 5.0 x4 Ryzen™ 8000 Series: M.2_1 (Key M), type 2242/2260/2280 — PCIe 4.0 x4 M.2_2 — Not supported M.2_3 — Not supported AMD X870E Chipset: M.2_4 (Key M), type 2280 — PCIe 4.0 x4 M.2_5 (Key M), type 2280 — PCIe 4.0 x4 4 × SATA 6Gb/s ports AMD RAIDXpert2: PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10 (RAID 5 supported by Ryzen™ 9000 Series only) ** M.2_2 & M.2_3 share bandwidth with PCIEX16(G5). When either or both are occupied, PCIEX16(G5) runs at x8 mode. *** M.2_2 & M.2_3 are disabled when using AMD Ryzen™ 8000 Series processors. |
| Ethernet | 1 × Realtek 5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), 2×2, supports 2.4/5/6GHz, 320MHz bandwidth, up to 6.5Gbps Bluetooth® v5.4 * Wi-Fi features may vary by OS. Windows 11 24H2 or later required for full Wi-Fi 7; Windows 11 21H2/22H2/23H2 supports Wi-Fi 6E only. No driver available for Windows 10. ** Wi-Fi 6GHz frequency band regulatory may vary between countries. *** Bluetooth version may vary; refer to Wi-Fi module manufacturer's website for latest specifications. |
| USB — Rear (13 ports) | 2 × USB4® 40Gbps (2 × Type-C®) 1 × USB 20Gbps (1 × Type-C® with up to 30W PD Fast-charge) 10 × USB 10Gbps (9 × Type-A + 1 × Type-C®) * USB Type-C® power delivery: 5V/3A. ** USB Type-C® Fast-charge: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2.0A. |
| USB — Front (11 ports) | 1 × USB 20Gbps connector (supports Type-C®) 2 × USB 5Gbps headers (4 additional USB 5Gbps ports) 3 × USB 2.0 headers (6 additional USB 2.0 ports) |
| Audio | ROG SupremeFX ALC4080 7.1 Surround Sound HD Audio CODEC Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking 120 dB SNR stereo playback output; 110 dB SNR recording input Supports up to 32-Bit/384kHz playback Features: Audio Shielding, Savitech SV3H712 AMP, Gold-plated audio jacks, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover * LINE OUT port on rear panel does not support spatial audio. Use front panel audio jack or USB audio device for spatial audio. |
| Back Panel I/O | 2 × USB4® 40Gbps (2 × Type-C®) 1 × USB 20Gbps (1 × Type-C® with up to 30W PD Fast-charge) 10 × USB 10Gbps (9 × Type-A + 1 × Type-C®) 1 × HDMI™ port 1 × Wi-Fi module 1 × Realtek 5Gb Ethernet 2 × Gold-plated audio jacks 1 × Optical S/PDIF out port 1 × BIOS FlashBack™ button 1 × Clear CMOS button |
| Internal I/O — Fan & Cooling | 1 × 4-pin CPU Fan header 1 × 4-pin CPU OPT Fan header 1 × 4-pin AIO Pump header 5 × 4-pin Chassis Fan headers |
| Internal I/O — Power | 1 × 24-pin Main Power connector 2 × 8-pin +12V CPU Power connectors |
| Internal I/O — Storage | 5 × M.2 slots (Key M) 4 × SATA 6Gb/s ports |
| Internal I/O — USB | 1 × USB 20Gbps connector (supports Type-C®) 2 × USB 5Gbps headers (4 additional ports) 3 × USB 2.0 headers (6 additional ports) |
| Internal I/O — Miscellaneous | 3 × Addressable Gen 2 headers 1 × CPU Over Voltage jumper 1 × FlexKey button 1 × Front Panel Audio header (F_AUDIO) 1 × Start button 1 × 10-1 pin System Panel header 1 × Thermal Sensor header |
| Special Features | Extreme Engine Digi+: 5K Black Metallic Capacitors Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Code, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot Thermal Solution: M.2 heatsinks, M.2 heatsink backplate, VRM heatsink design EZ DIY: BIOS FlashBack™ button/LED, Clear CMOS button, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM Aura Sync: Addressable Gen 2 headers |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

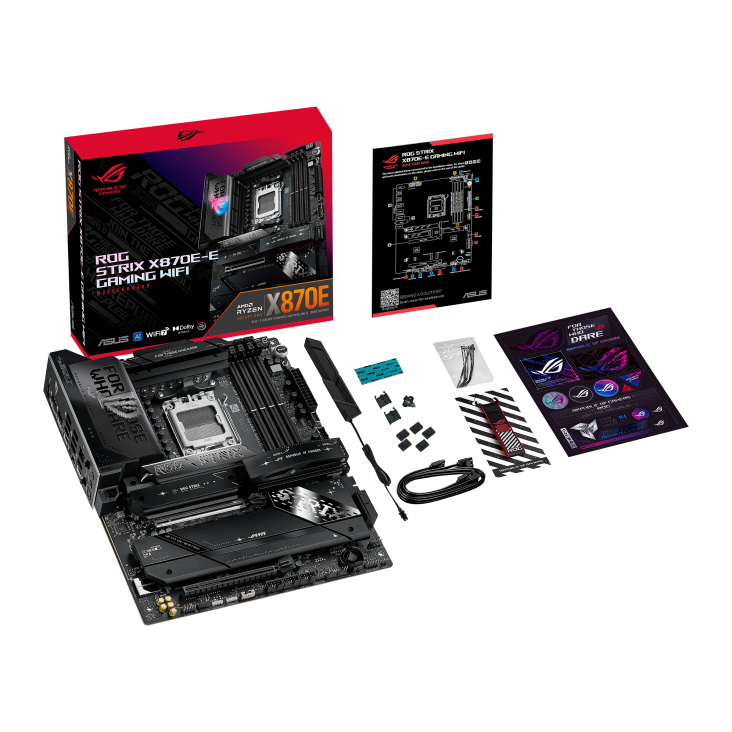

| Accessories | 2 × SATA 6Gb/s cables 1 × Thermal pad for M.2 22110 1 × ASUS Wi-Fi moving antennas 1 × Cable ties pack 1 × M.2 Q-Latch package 2 × M.2 Q-Slides 5 × M.2 Rubbers 1 × ROG key chain 1 × ROG Strix stickers 1 × Quick start guide |
| Operating System | Windows® 11 64-bit |
| Form Factor | ATX 12 in. × 9.6 in. (30.5 cm × 24.4 cm) |
