ASUS ProArt Z890-CREATOR WIFI ATX Motherboard LGA1851 Socket Z890 Chipset USB4 USB-C 3.2 Gen 2x2 USB 3.2 Gen 2 USB 3.2 Gen
$489.99
| Specifications | |
|---|---|
| Model | ProArt Z890-CREATOR WIFI |
| CPU | Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 × DIMM slots, Max. 256GB, DDR5 Supports up to 9066+ MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM) Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile III (AEMP III) Supports DIMM Fit Supports DIMM Flex * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. Refer to CPU/Memory Support list or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 × HDMI™ port 2 × Intel® Thunderbolt™ 5 ports (USB Type-C®) — supports DisplayPort and Thunderbolt™ video outputs 1 × Intel® Thunderbolt™ 4 port (USB Type-C®) — supports DisplayPort and Thunderbolt™ video outputs * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** HDMI 2.1 supports 4K@60Hz. *** Thunderbolt™ 5: Supports up to 2 × 8K@60Hz (DSC mode) + 1 × 4K@60Hz monitors with DP in; up to 1 × 8K@60Hz (DSC mode) + 1 × 4K@60Hz monitors without DP in. For resolution support please check DisplayPort 2.1 specs. Thunderbolt™ 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt™ cables. **** Thunderbolt™ 4 mode: supports up to 8K@60Hz ×1 with DSC, maximum total bandwidth up to 23.8Gbps. In DP Alt mode, supports up to UHBR20. When the Thunderbolt™ 5 port is used to output two displays via integrated graphics, the Thunderbolt™ 4 port will not be able to output any display. ***** While installing the operating system, please ensure your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2): 2 × PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel® Z890 Chipset: 1 × PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. * Refer to https://www.asus.com/support/download-center/ for supported peripherals. |
| Storage | Total: 5 × M.2 slots + 4 × SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2): M.2_1 (Key M), type 2242/2260/2280/22110 — PCIe 5.0 x4 M.2_2 (Key M), type 2242/2260/2280 — PCIe 4.0 x4 Intel® Z890 Chipset: M.2_3 (Key M), type 2242/2260/2280 — PCIe 4.0 x4 M.2_4 (Key M), type 2242/2260/2280 — PCIe 4.0 x4 M.2_5 (Key M), type 2242/2260/2280 — PCIe 4.0 x4 & SATA 4 × SATA 6Gb/s ports Intel® RST: PCIe RAID 0/1/5/10; SATA RAID 0/1/5/10 (M.2 slot from CPU supports RAID 0/1/5 only) ** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled. |
| Ethernet | 1 × Marvell® AQtion 10Gb Ethernet 1 × Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), 2×2, supports 2.4/5/6GHz, 320MHz bandwidth, up to 5.8Gbps Bluetooth® v5.4 * Wi-Fi features may vary depending on the operating system. Windows 11 24H2 or later required for full Wi-Fi 7; Windows 11 21H2/22H2/23H2 supports Wi-Fi 6E only. Windows 10 supports Wi-Fi 6 only. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** Bluetooth version may vary; refer to Wi-Fi module manufacturer's website for latest specifications. |
| USB — Rear (10 ports) | 2 × Thunderbolt™ 5 (2 × Type-C®) 1 × USB4 / Thunderbolt™ 4 (1 × Type-C®) 6 × USB 10Gbps (6 × Type-A) 1 × USB 2.0 (1 × Type-A) * USB Type-C® power delivery output: max. 5V/3A. |
| USB — Front (5 ports) | 1 × USB 20Gbps connector (supports USB Type-C®) 1 × USB 5Gbps header (2 additional USB 5Gbps ports) 1 × USB 2.0 header (2 additional USB 2.0 ports) |
| Audio | Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC Impedance sense for front and rear headphone outputs Internal audio amplifier for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking 120 dB SNR stereo playback output; 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192kHz playback Features: Gold-plated audio jacks, Premium audio capacitors, Dedicated audio PCB layers * Due to HDA bandwidth limitations, 32-Bit/192kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O | 2 × Thunderbolt™ 5 (USB Type-C®) 1 × USB4 / Thunderbolt™ 4 (USB Type-C®) 6 × USB 10Gbps (6 × Type-A) 1 × USB 2.0 (1 × Type-A) 1 × DisplayPort (Input only) 1 × HDMI™ port 1 × Wi-Fi module 1 × Marvell® AQtion 10Gb Ethernet port 1 × Intel® 2.5Gb Ethernet port 2 × Gold-plated audio jacks 1 × BIOS FlashBack™ button |
| Internal I/O — Fan & Cooling | 1 × 4-pin CPU Fan header 1 × 4-pin CPU OPT Fan header 1 × 4-pin AIO Pump header 5 × 4-pin Chassis Fan headers |
| Internal I/O — Power | 1 × 24-pin Main Power connector 2 × 8-pin +12V CPU Power connectors |
| Internal I/O — Storage | 5 × M.2 slots (Key M) 4 × SATA 6Gb/s ports |
| Internal I/O — USB | 1 × USB 20Gbps connector (supports USB Type-C®) 1 × USB 5Gbps header (2 additional ports) 1 × USB 2.0 header (2 additional ports) |
| Internal I/O — Miscellaneous | 3 × Addressable Gen 2 headers 1 × Clear CMOS button 1 × COM Port header 1 × CPU Overvoltage jumper 1 × Chassis Intrusion header 1 × Front Panel Audio header (F_AUDIO) 1 × SPI TPM header (14-1 pin) 1 × 10-1 pin Front System Panel header 1 × Thermal Sensor header |
| Special Features | ASUS 5X Protection III: DIGI+ VRM (DrMOS), ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Connector, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Thermal Solution: M.2 heatsink backplate, M.2 heatsink, VRM heatsink design EZ DIY: BIOS FlashBack™ button/LED, Box headers, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeDIMM Aura Sync: Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features: 24/7 reliability, Overcurrent protection |
| Software | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving) ASUS DriverHub / ASUS GlideX / ASUS CPU-Z / CreationFirst / ProArt Creator Hub / TurboV Core Thunderbolt™ Share UEFI BIOS: AI Overclocking Guide, ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, NPU Boost |
| Remote Management | ASUS Control Center Express (ACCE) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

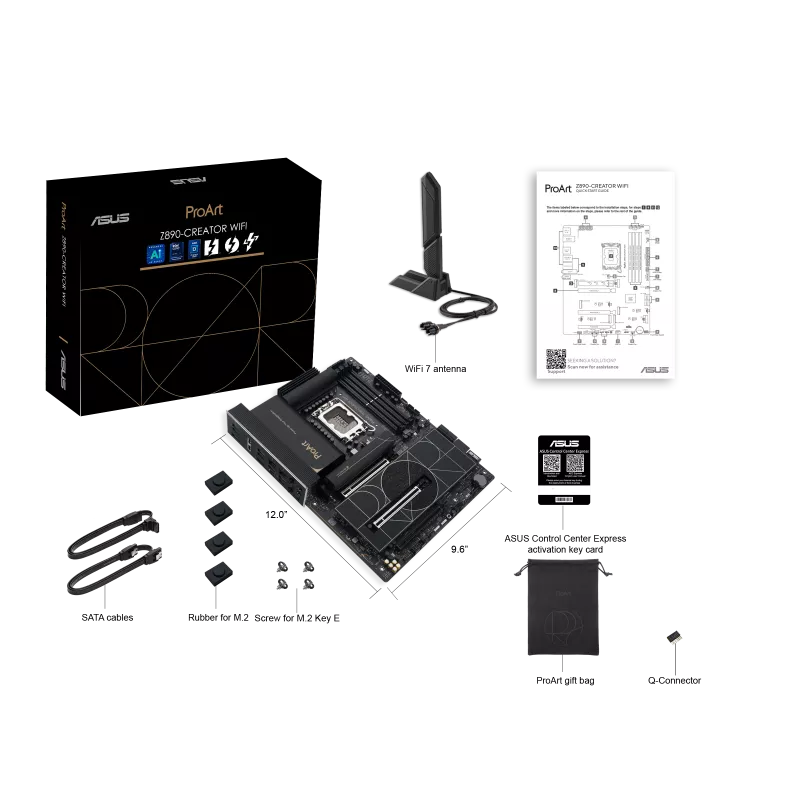

| Accessories | 2 × SATA 6Gb/s cables 1 × ASUS WiFi Q-Antenna 1 × Q-Connector 2 × M.2 Q-Latch packages 2 × M.2 rubber packages 1 × ProArt accessory bag 1 × ACC Express activation key card 1 × Quick start guide |
| Operating System | Windows® 11 (22H2 & later) |
| Form Factor | ATX 12 in. × 9.6 in. (30.5 cm × 24.4 cm) |
