ASUS NVIDIA GeForce RTX 5090 ROG Astral Edition 20 OC Quad-Fan Graphics Card 32GB GDDR7 PCIe 5.0 x16 Interface; 170 RT Cores
ROG ASTRAL GEFORCE RTX 5090 EDITION 20
Innovate. Perform. Dominate.
For two decades, ROG has stood at the forefront of gaming innovation, pushing boundaries and defining excellence. To commemorate this monumental 20th anniversary, ROG proudly unveils a special selection of limited-edition ROG components and gear featuring an alternative colorway and leading innovations. More than an aesthetic, this colorway reflects core values that are a testament to an enduring legacy.

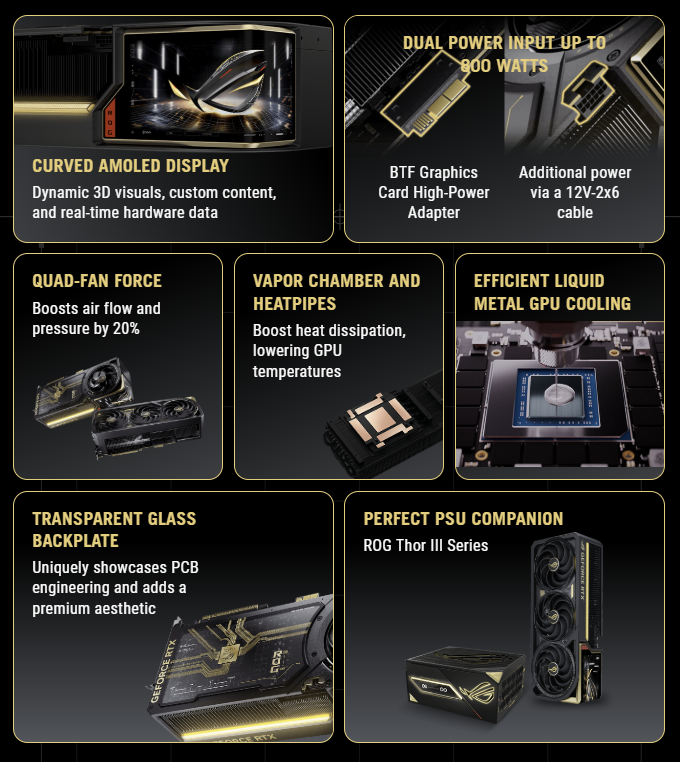

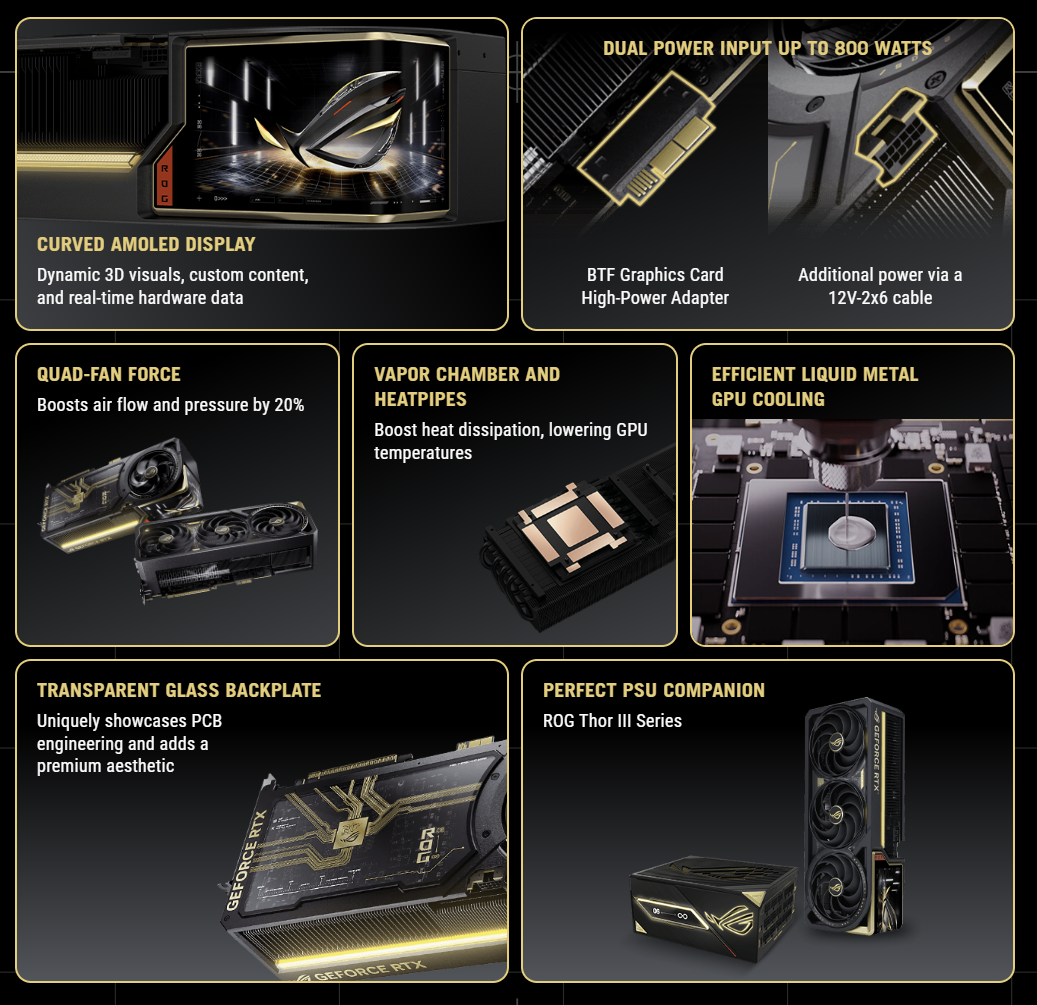

The ROG Astral GeForce RTX™ 5090 Edition 20 is a masterpiece of engineering, visual flair, and performance. It features a captivating curved AMOLED display that delivers dynamic 3D visuals and real-time data, and a transparent glass backplate that showcases the intricate design within. It also unleashes extreme power, drawing up to 800 watts with dual-power input via its detachable GC-HPWR adapter and a power supply. And it is all meticulously cooled by a formidable quad-fan design, liquid metal, and vapor chamber for sustained peak performance.
| Specifications | |
|---|---|
| Graphics Processor | |
| Model | ROG Astral GeForce RTX 5090 Edition 20 |
| Graphics Engine | NVIDIA® GeForce RTX™ 5090 |
| AI Performance | 3352 TOPs |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL® 4.6 |
| Memory | |
| Video Memory | 32GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 512-bit |
| Performance | |
| Engine Clock | OC Mode: 2760 MHz Default Mode: 2730 MHz (Boost Clock) |
| CUDA Cores | 21,760 |
| Maximum Resolution | 7680 x 4320 |
| Display Outputs | |
| HDMI Outputs | 2 x Native HDMI 2.1b |
| DisplayPort Outputs | 3 x Native DisplayPort 2.1b |
| HDCP Support | HDCP 2.3 |
| Maximum Display Support | 4 Displays |
| NVLink / CrossFire Support | No |
| Power | |
| Recommended PSU | 1200W or Higher |
| Power Connector | 1 x 16-pin GC-HPWR (Graphics Card High-Power) Gold Finger |
| Physical | |
| Dimensions | 361 x 139.3 x 93.9 mm (14.21 x 5.48 x 3.7 inches) |
| Slot Size | 4.7 Slot |
| AURA SYNC | ARGB |
| Hidden Connector (BTF) | Supported with Graphics Card High-Power Gold Finger |
| Accessories Included | |
| Package Contents | 1 x Detachable AMOLED Display 1 x Detachable Glass Backplate 1 x Detachable GC-HPWR Adapter 1 x ROG Edition 20 Graphics Card Holder 1 x ROG Velcro Hook & Loop 1 x ROG Magnet 1 x ROG Graphics Card Keycap 1 x ROG PCB Ruler 1 x ROG Edition 20 Thank You Card 1 x ROG Edition 20 Sticker 1 x ROG Edition 20 Collective Coin 1 x Adapter Cable (1 to 4) 1 x USB Adapter Cable (Type-A to Type-C) 1 x Speedsetup Manual |
| Software | |
| Supported Software | ASUS GPU Tweak III MuseTree GeForce Game Ready Driver GeForce Studio Driver Download available from the ASUS support website |
| Notes | |
| Important Information | Recommended PSU wattage is based on a fully overclocked CPU and GPU configuration. Maximum |
