MSI MPG A1000G PCIE5 1000W ATX 3.0 Power Supply 80 PLUS Gold Fully Modular 135mm Fan PCIe 5.0 Ready
Model #: MPG A1000G PCIE5
Item #: POWMSIA10G5R
(view)
x
- Store inventory
-
837 Howard Street, CA 94103
415-495-58881 -
2727 S. El Camino Real, CA 94403
650-345-58880 -
510 Lawrence Expressway, Suite 107, CA 94085
650-964-58880 -
3777 Stevens Creek Blvd., CA 95051
408-248-58880 -
5990 Mowry Ave., CA 94560
510-792-58880 -
Disclaimer: Inventory accuracy is not guaranteed. We can do transfers between stores or special order for your convenience.
MSI MPG A1000G PCIE5 1000W ATX 3.0 Power Supply 80 PLUS Gold Fully Modular 135mm Fan PCIe 5.0 Ready
$199.99
Product Details
- • Supports Nvidia® GeForce RTXTM 40 Series graphics cards
- • Full modular design
- • Flat cables
- • 80 Plus Gold certified for high efficiency
- • 100% all Japanese 105oC capacitor
- • Active PFC design
- • Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- • LLC Half Bridge Topology with DC-DC module design

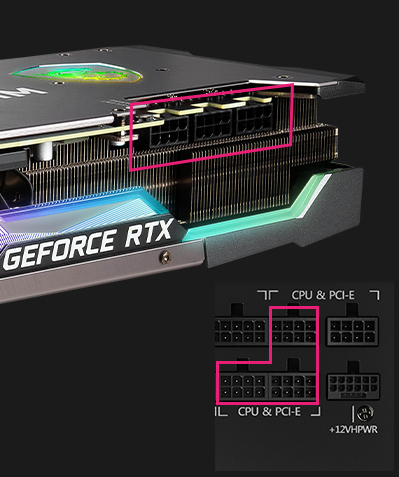

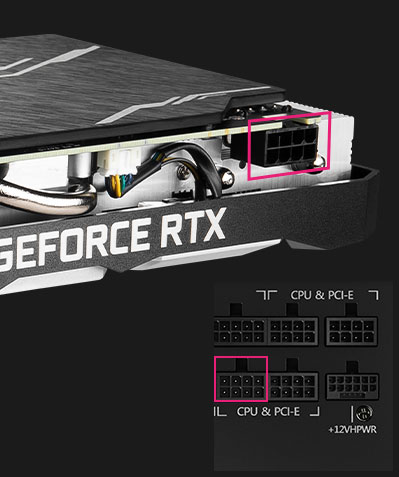

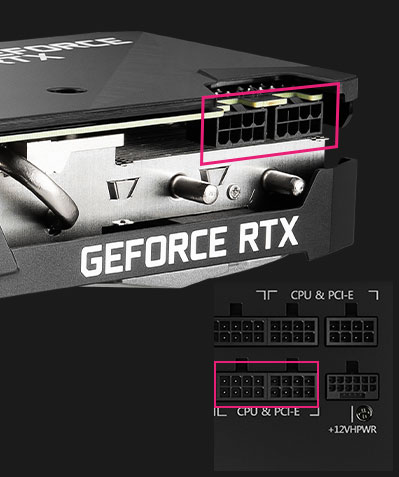

GPU Support For All
The gaming power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
1 VGA Power Connector
2 VGA Power Connector
3 VGA Power Connector

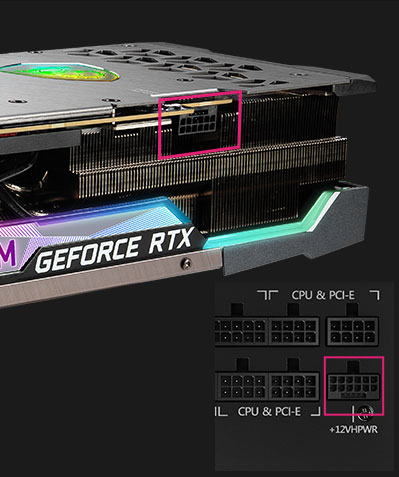

16 pin VGA Power Connector
Specifications
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (fully modular) |
| Fan Size | 135 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (DxWxH) | 150 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100~240 VAC |
| Power Watt | 1000W |
| Power Excursion | 2000W (*up to 200% of the PSU's rated power for 100μs) |
| Input Frequency Range | 50~60 Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 Pin) | 1 |
| EPS (4+4 PIN) | 2 |
| PCI-E 5.0 (16 PIN) | 1 |
| PCI-E (6+2 PIN) | 6 |
| SATA (15 PIN) | 12 |
| MOLEX (4 PIN) | 4 |
| FDD (4 PIN) | 1 |
