ASUS X670 PROART X670E-CREATOR WIFI ATX Motherboard Ryzen 7000 Socket AM5 LGA1718 4x DDR5 DIMM Slots Max 128GB PCIe 5.0

$499.99



Specifications

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset

AMD X670

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.

Graphics



1x HDMI® port**

2 x USB4® ports support USB Type-C® display outputs***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports [email protected] as specified in HDMI 2.1.
*** Supports max. [email protected] as specified in DisplayPort 1.4.
**** Output at USB4_EC1 and USB4_EC2, each requires a USB-C® to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots



AMD Ryzen™ 7000 Series Desktop Processors

  • 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)

AMD X670 Chipset

  • 1 x PCIe 4.0 x16 slot (supports x2 mode)**

* Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
** PCIEX16_3 shares bandwidth with M.2_3 slot. Please adjust in BIOS setting to enable PCIEX16_3.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage



Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 is in operation after adjusting in BIOS settings, M.2_3 slot will only run at PCIe x2 mode.

Ethernet

1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries.

USB

Rear USB (Total 11 ports)
2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
7 x USB 3.2 Gen 2 ports (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)

Front USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports

Audio



Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*

Audio Features
- Power pre-regulator reduces power input noise to ensure consistent performance
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

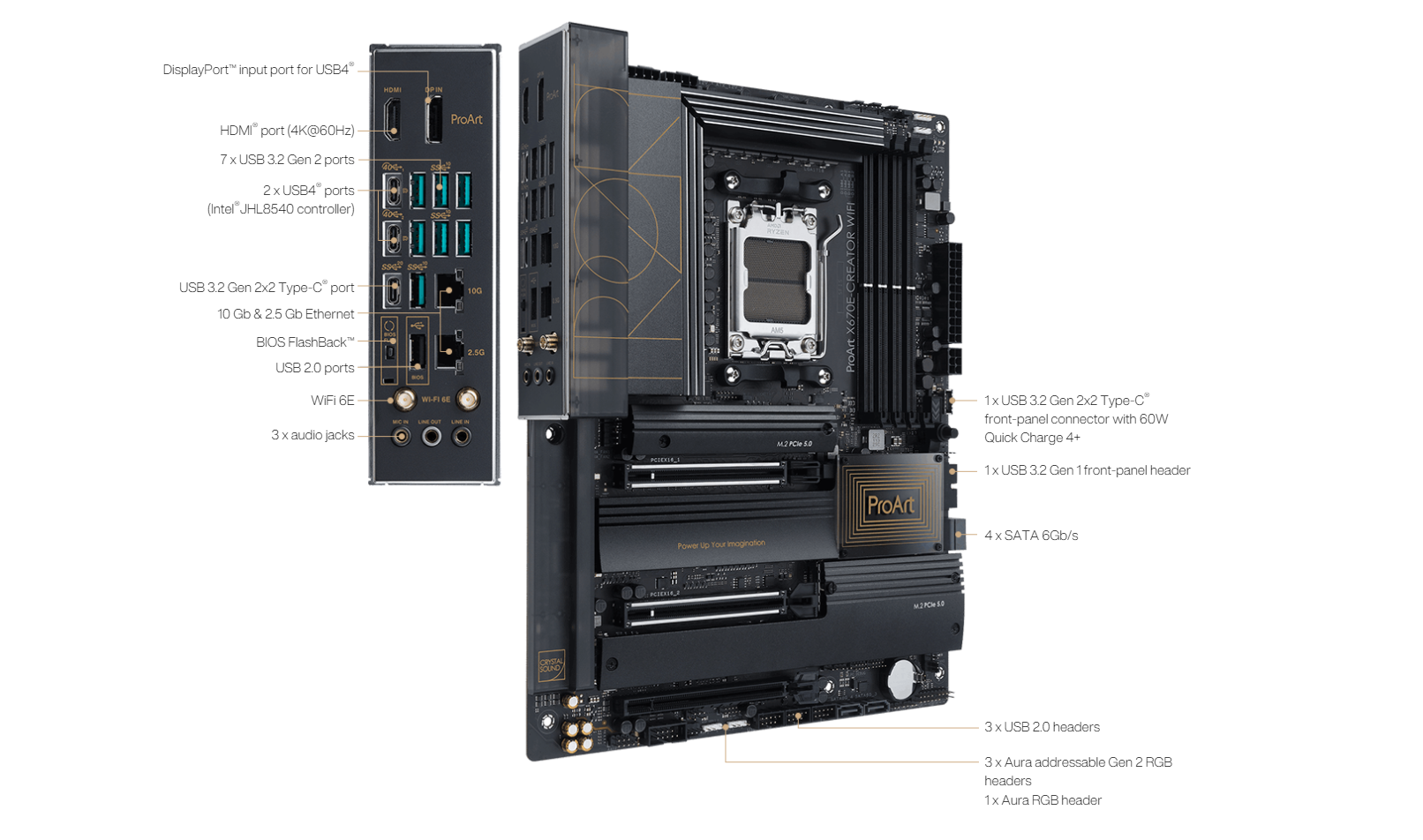

Back Panel I/O Ports

2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
7 x USB 3.2 Gen 2 ports (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI® port
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors





Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
1 x 6-pin PCIe Power connector

Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O

ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

AURA Sync
- Aura RGB header
- Addressable Gen 2 headers

Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection

Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
- Support: up to 60W charging*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
 TPU
 DIGI+ VRM
 Turbo app
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
CreationFirst
MyAsus
Norton Anti-virus software (Free Trial version)
ProArt Creator Hub
WinRAR

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package for M.2 backplate
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
1 x Screw packages for M.2 SSD
1 x ProArt ruler

Documentation
1 x ACC Express Activation Key Card
1 x User guide

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
