ASUS TUF GAMING Z890-PLUS WIFI Z890 LGA 1851 ATX motherboard Intel Core Ultra Series 2 Ready Advanced AI PC-ready 16+1+2+1
Model #: 90MB1IQ0-M0AAY0
Item #: MOTASUZ89PWR
(view)
x
- Store inventory
-
837 Howard Street, CA 94103
415-495-58884 -
2727 S. El Camino Real, CA 94403
650-345-58885 -
510 Lawrence Expressway, Suite 107, CA 94085
650-964-588811 -
3777 Stevens Creek Blvd., CA 95051
408-248-58885 -
5990 Mowry Ave., CA 94560
510-792-58884 -
Disclaimer: Inventory accuracy is not guaranteed. We can do transfers between stores or special order for your convenience.
ASUS TUF GAMING Z890-PLUS WIFI Z890 LGA 1851 ATX motherboard Intel Core Ultra Series 2 Ready Advanced AI PC-ready 16+1+2+1
was
$279.99
Special Price
$269.99
| Specifications | |
|---|---|
| Model | TUF GAMING Z890-PLUS WIFI |
| CPU | Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU type. |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 × DIMM slots, Max. 256GB, DDR5 Supports up to 9066+ MT/s (OC), Non-ECC Un-buffered / CUDIMM Dual Channel Memory Architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate, and number of DRAM modules vary depending on CPU and memory configuration. Refer to CPU/Memory Support list or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. *** Adjustments will be made based on the specifications of mass-produced memory products available on the market. |
| Graphics | 1 × DisplayPort 1 × HDMI™ port 1 × Thunderbolt™ 4 port (USB Type-C®) — supports DisplayPort and Thunderbolt™ video outputs 1 × USB 20Gbps port (USB Type-C®) — supports DisplayPort video output (DP Alt mode) * Graphics specifications may vary between CPU types. Please refer to www.intel.com for updates. ** DisplayPort 1.4 supports max. 4K@60Hz. *** HDMI 2.1 supports 4K@60Hz. **** Thunderbolt™ 4 mode supports up to 8K@60Hz ×1 with DSC, max. total bandwidth 23.8Gbps. ***** USB 20Gbps DP Alt mode supports max. 4K@60Hz as specified in DisplayPort 1.4. ****** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | Intel® Core™ Ultra (Series 2): 1 × PCIe 5.0 x16 slot Intel® Z890 Chipset: 1 × PCIe 4.0 x16 slot (supports x4 mode) Intel® Z890 Chipset: 1 × PCIe 4.0 x4 slot Intel® Z890 Chipset: 2 × PCIe 4.0 x1 slots * Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. * Refer to https://www.asus.com/support/download-center/ for supported peripherals. |
| Storage | Total: 4 × M.2 slots + 4 × SATA 6Gb/s ports Intel® Core™ Ultra (Series 2): M.2_1 (Key M), type 2242/2260/2280 — PCIe 5.0 x4 M.2_2 (Key M), type 2280 — PCIe 4.0 x4 Intel® Z890 Chipset: M.2_3 (Key M), type 2280/22110 — PCIe 4.0 x4 M.2_4 (Key M), type 2242/2260/2280 — PCIe 4.0 x4 & SATA 4 × SATA 6Gb/s ports Intel® RST: PCIe RAID 0/1/5/10; SATA RAID 0/1/5/10 (M.2 slot from CPU supports RAID 0/1/5 only) |
| Ethernet | 1 × Intel® 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), 2×2, supports 2.4/5/6GHz, 160MHz bandwidth, up to 2.9Gbps Bluetooth® v5.4 * Wi-Fi features may vary by OS. Windows 11 24H2 or later required for full Wi-Fi 7; Windows 11 21H2/22H2/23H2 supports Wi-Fi 6E only. No driver available for Windows 10. ** Wi-Fi 6GHz frequency band regulatory may vary between countries. *** Bluetooth version may vary; refer to Wi-Fi module manufacturer's website for latest specifications. |
| USB — Rear (8 ports) | 1 × Thunderbolt™ 4 (1 × Type-C®) 1 × USB 20Gbps (1 × Type-C®) 3 × USB 10Gbps (3 × Type-A) 3 × USB 5Gbps (3 × Type-A) * USB Type-C® power delivery output: max. 5V/3A. |
| USB — Front (7 ports) | 1 × USB 20Gbps connector (supports Type-C®) 1 × USB 5Gbps header (2 additional USB 5Gbps ports) 2 × USB 2.0 headers (4 additional USB 2.0 ports) |
| Audio | Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC Impedance sense for front and rear headphone outputs Internal audio amplifier for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking 120 dB SNR stereo playback output; 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192kHz playback Features: Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit * Due to HDA bandwidth limitations, 32-Bit/192kHz is not supported for 7.1 Surround Sound audio. |
| Back Panel I/O | 1 × Thunderbolt™ 4 (1 × Type-C®) 1 × USB 20Gbps (1 × Type-C® with DP Alt mode) 3 × USB 10Gbps (3 × Type-A) 3 × USB 5Gbps (3 × Type-A) 1 × DisplayPort 1 × HDMI™ port 1 × Wi-Fi module 1 × Intel® 2.5Gb Ethernet port 5 × Audio jacks 1 × Optical S/PDIF out port 1 × BIOS FlashBack™ button |
| Internal I/O — Fan & Cooling | 1 × 4-pin CPU Fan header 1 × 4-pin CPU OPT Fan header 1 × 4-pin AIO Pump header 4 × 4-pin Chassis Fan headers |
| Internal I/O — Power | 1 × 24-pin Main Power connector 2 × 8-pin +12V CPU Power connectors |
| Internal I/O — Storage | 4 × M.2 slots (Key M) 4 × SATA 6Gb/s ports |
| Internal I/O — USB | 1 × USB 20Gbps connector (supports Type-C®) 1 × USB 5Gbps header (2 additional ports) 2 × USB 2.0 headers (4 additional ports) |
| Internal I/O — Miscellaneous | 3 × Addressable RGB Gen 2 headers 1 × Clear CMOS header 1 × Chassis Intrusion header 1 × COM Port header 1 × Front Panel Audio header (F_AUDIO) 1 × 10-1 pin Front System Panel header 1 × Thunderbolt™ (USB4®) header |
| Special Features | TUF Protection: DIGI+ VRM (DrMOS), ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot Thermal Solution: M.2 heatsink backplate, M.2 heatsink, VRM heatsink design EZ DIY: BIOS FlashBack™ button/LED, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeDIMM Aura Sync: Addressable Gen 2 headers |
| Software | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II, Power Saving) ASUS DriverHub / ASUS GlideX / TurboV Core / TUF GAMING CPU-Z DTS Audio Processing UEFI BIOS: ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, NPU Boost |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

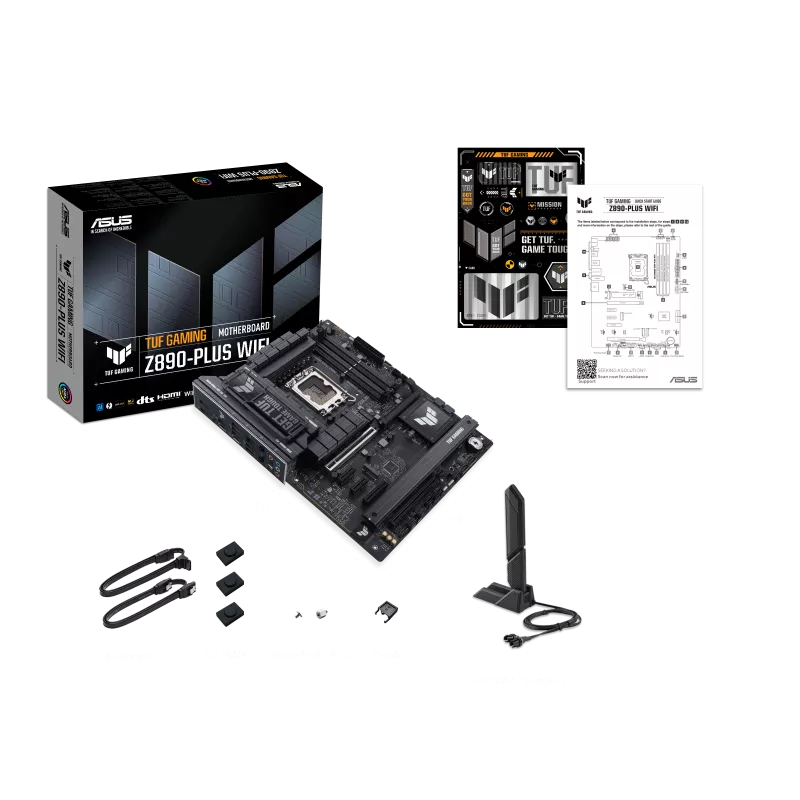

| Accessories | 2 × SATA 6Gb/s cables 1 × ASUS WiFi Q-Antenna 1 × M.2 Q-Slide package 2 × M.2 rubber packages 1 × Screw package for M.2 SSD 1 × TUF GAMING sticker 1 × TUF GAMING removable nameplate 1 × Quick start guide |
| Operating System | Windows® 11 (22H2 & later) |
| Form Factor | ATX 12 in. × 9.6 in. (30.5 cm × 24.4 cm) |
