ASUS TUF GAMING X870-PLUS WIFI ATX AM5 Motherboard Ryzen 9000/7000 Socket AM5 LGA 17184 4x DDR5 DIMM 1x PCIe 5.0 x16 1x PCIe
Model #: TUF GAMING X870-PLUS WIFI
Item #: MOTASUX87PLR
x
Special Order
These items are not immediately available for pickup at our stores.
We can ship these products to our stores for free in-store pickup.
Items usually arrive at the store within 2 to 7 business days.
ASUS TUF GAMING X870-PLUS WIFI ATX AM5 Motherboard Ryzen 9000/7000 Socket AM5 LGA 17184 4x DDR5 DIMM 1x PCIe 5.0 x16 1x PCIe
$279.99
| Specifications | |
|---|---|
| Model | TUF GAMING X870-PLUS WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset | AMD X870 Chipset |
| Memory | 4 × DIMM slots, Max. 256GB, DDR5 Supports up to 8000+ MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Supported memory types, data rate, and number of DRAM modules vary depending on CPU and memory configuration. Refer to CPU/Memory Support list or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 × HDMI™ port 2 × USB4® (40Gbps) ports support USB Type-C® display outputs * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** HDMI 2.1 supports 4K@60Hz. *** USB4® display outputs support max. 4K@60Hz as specified in DisplayPort 1.4a. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 1 × PCIe 5.0 x16 slot (supports x16 mode) Ryzen™ 8000 Series: 1 × PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset: 1 × PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. ** PCIEX16(G5) shares bandwidth with M.2_2; runs x8 when M.2_2 is active. *** Specifications vary by CPU types. **** PCIEX16(G4) shares bandwidth with M.2_4; disabled when M.2_4 is active. * Refer to https://www.asus.com/support/download-center/ for supported peripherals. |
| Storage | Total: 4 × M.2 slots + 2 × SATA 6Gb/s ports Ryzen™ 9000 & 7000 Series: M.2_1 (Key M), type 2280 — PCIe 5.0 x4 M.2_2 (Key M), type 2280 — PCIe 5.0 x4 Ryzen™ 8000 Series: M.2_1 (Key M), type 2280 — PCIe 4.0 x4 M.2_2 — Not supported AMD X870 Chipset: M.2_3 (Key M), type 2280 — PCIe 4.0 x4 M.2_4 (Key M), type 2242/2260/2280/22110 — PCIe 4.0 x4 2 × SATA 6Gb/s ports AMD RAIDXpert2: PCIe RAID 0/1/5/10 and SATA RAID 0/1 (RAID 5 supported by Ryzen™ 9000 Series only) ** PCIEX16(G5) shares bandwidth with M.2_2; runs x8 when M.2_2 is active. *** PCIEX16(G4) shares bandwidth with M.2_4; disabled when M.2_4 is active. |
| Ethernet | 1 × Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), 2×2, supports 2.4/5/6GHz, 160MHz bandwidth, up to 2.9Gbps Bluetooth® v5.4 * Wi-Fi features may vary by OS. Windows 11 24H2 or later required for full Wi-Fi 7; Windows 11 21H2/22H2/23H2 supports Wi-Fi 6E only. ** Wi-Fi 6GHz frequency band regulatory may vary between countries. *** Bluetooth version may vary; refer to Wi-Fi module manufacturer's website for latest specifications. |
| USB — Rear (10 ports) | 2 × USB4® 40Gbps (2 × Type-C®) 3 × USB 10Gbps (3 × Type-A) 4 × USB 5Gbps (4 × Type-A) 1 × USB 2.0 (1 × Type-A) * USB Type-C® power delivery output: max. 5V/3A. |
| USB — Front (7 ports) | 1 × USB 20Gbps connector (supports Type-C® with up to 30W PD Fast-charge) 1 × USB 5Gbps header (2 additional USB 5Gbps ports) 2 × USB 2.0 headers (4 additional USB 2.0 ports) ** USB Type-C® Fast-charge: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A. Compatible with PD3.0. |
| Audio | Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC Impedance sense for front and rear headphone outputs Internal audio amplifier for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking 120 dB SNR stereo playback output; 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192kHz playback Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit * Due to HDA bandwidth limitations, 32-Bit/192kHz is not supported for 7.1 Surround Sound audio. |
| Back Panel I/O | 2 × USB4® 40Gbps (2 × Type-C®) 3 × USB 10Gbps (3 × Type-A) 4 × USB 5Gbps (4 × Type-A) 1 × USB 2.0 (1 × Type-A) 1 × HDMI™ port 1 × Wi-Fi module 1 × Realtek 2.5Gb Ethernet port 5 × Audio jacks 1 × BIOS FlashBack™ button |
| Internal I/O — Fan & Cooling | 1 × 4-pin CPU Fan header 1 × 4-pin CPU OPT Fan header 1 × 4-pin AIO Pump header 4 × 4-pin Chassis Fan headers 1 × W_PUMP+ header |
| Internal I/O — Power | 1 × 24-pin Main Power connector 2 × 8-pin +12V CPU Power connectors |
| Internal I/O — Storage | 4 × M.2 slots (Key M) 2 × SATA 6Gb/s ports |
| Internal I/O — USB | 1 × USB 20Gbps connector (supports Type-C® with up to 30W PD Fast-charge) 1 × USB 5Gbps header (2 additional ports) 2 × USB 2.0 headers (4 additional ports) |
| Internal I/O — Miscellaneous | 3 × Addressable Gen 2 headers 1 × Clear CMOS header 1 × Chassis Intrusion header 1 × COM Port header 1 × Front Panel Audio header (F_AUDIO) 1 × 10-1 pin Front System Panel header 1 × Thermal Sensor header |
| Special Features | TUF Protection: DIGI+ VRM (SPS), ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot Thermal Solution: M.2 heatsinks, VRM heatsink design EZ DIY: BIOS FlashBack™ button/LED, ProCool, Pre-mounted I/O shield, SafeDIMM Aura Sync: Addressable Gen 2 headers Front Panel USB 20Gbps PD Fast Charge: up to 30W, PD3.0 compatible (5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A) |
| Software | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II, Power Saving) ASUS DriverHub / ASUS AI Advisor / ASUS GlideX / USB Wattage Watcher / TurboV Core / TUF GAMING CPU-Z DTS Audio Processing UEFI BIOS: AI Overclocking Guide, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

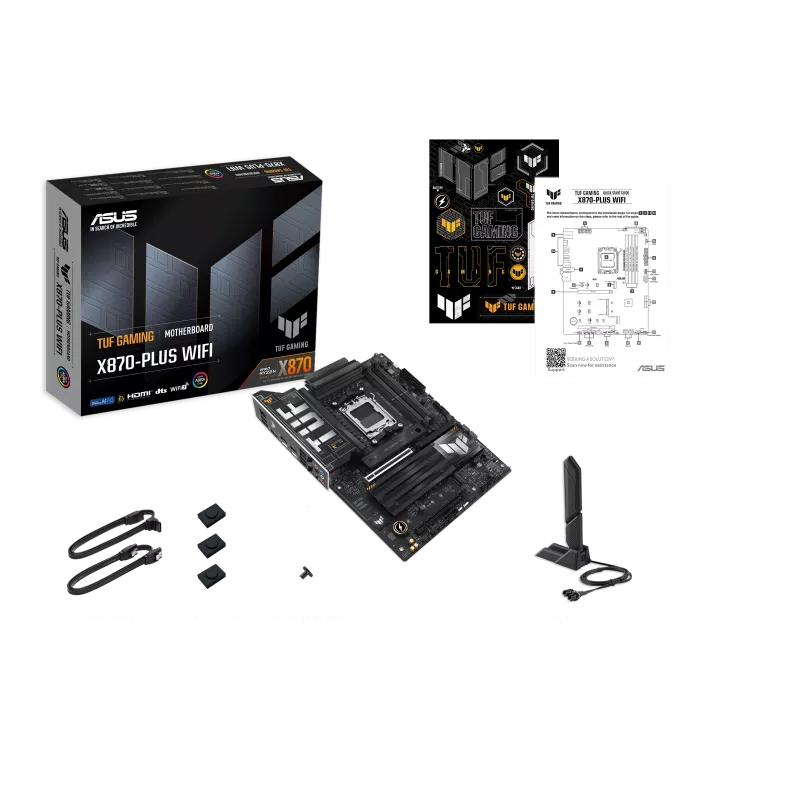

| Accessories | 2 × SATA 6Gb/s cables 1 × ASUS WiFi Q-Antenna 2 × M.2 rubber packages 1 × Screw package for M.2 SSD 1 × TUF GAMING sticker 1 × Quick start guide |
| Operating System | Windows® 11 |
| Form Factor | ATX 12 in. × 9.6 in. (30.5 cm × 24.4 cm) |
