ASUS TUF GAMING B650EM-E WIFI Micro ATX Motherboard Ryzen 9000 Socket AM5 LGA 1718 4x DDR5 DIMM Slots Max 256GB
Model #: TUF GAMING B650EM-E WIFI
Item #: MOTASU65EMWR
(view)
x
- Store inventory
-
837 Howard Street, CA 94103
415-495-58885 -
2727 S. El Camino Real, CA 94403
650-345-58885 -
510 Lawrence Expressway, Suite 107, CA 94085
650-964-58887 -
3777 Stevens Creek Blvd., CA 95051
408-248-58885 -
5990 Mowry Ave., CA 94560
510-792-58886 -
Disclaimer: Inventory accuracy is not guaranteed. We can do transfers between stores or special order for your convenience.
ASUS TUF GAMING B650EM-E WIFI Micro ATX Motherboard Ryzen 9000 Socket AM5 LGA 1718 4x DDR5 DIMM Slots Max 256GB
$209.99
| General Information | |
| Product Type | Gaming Desktop Motherboard |
| Brand Name | TUF |
| Manufacturer | ASUS Computer International |
| Product Model | GAMING B650EM-E WIFI |
| Product Name | GAMING B650EM-E WIFI Gaming Desktop Motherboard |
| Manufacturer Part Number | TUF GAMING B650EM-E WIFI |
| Manufacturer Website Address | http://usa.asus.com |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 9 |
| Processor Supported | Ryzen 8 |
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Memory Speed Supported | 8000 MHz |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| Maximum Memory Supported | 256 GB |
| I/O Controller | |
| RAID Supported | Yes |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | 10 |
| RAID Levels | 5 |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5.2 |
| 2.5Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 3 |
| Total Number of Expansion Slots | 3 |
| Interfaces/Ports | |
| HDMI | Yes |
| HDMI Version | 2.1 |
| VGA | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 3 |
| Physical Characteristics | |
| Width | 9.6" |
| Depth | 9.6" |
| Form Factor | Micro ATX |
| Specifications | |
|---|---|
| Model | TUF GAMING B650EM-E WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * Refer to www.asus.com for CPU support list. |
| Chipset | AMD B650 Chipset |
| Memory | 4 × DIMM slots, Max. 256GB, DDR5 Supports up to 8000+ MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate, and number of DRAM modules vary depending on the CPU and memory configuration. Refer to CPU/Memory Support list or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 2 × DisplayPort 1 × HDMI™ port * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** DisplayPort 1.4 supports max. 8K@60Hz. *** HDMI 2.1 supports 4K@60Hz. |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 1 × PCIe 5.0 x16 slot Ryzen™ 8000 Series: 1 × PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B650 Chipset: 1 × PCIe 4.0 x1 slot * Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. ** Specifications vary by CPU types. Refer to https://www.asus.com/support/ for supported peripherals. |
| Storage | Total: 3 × M.2 slots + 4 × SATA 6Gb/s ports Ryzen™ 9000 & 7000 Series: M.2_1 (Key M), type 2280 — PCIe 5.0 x4 M.2_2 (Key M), type 2280 — PCIe 4.0 x4 Ryzen™ 8000 Series: M.2_1 (Key M), type 2280 — PCIe 4.0 x4 M.2_2 (Key M), type 2280 — PCIe 4.0 x4/x2 AMD B650 Chipset: M.2_3 (Key M), type 2242/2260/2280 — PCIe 4.0 x4 4 × SATA 6Gb/s ports AMD RAIDXpert2: Ryzen™ 9000 — RAID 0/1/5/10; Ryzen™ 8000 — RAID 0/1; Ryzen™ 7000 — RAID 0/1/10 * Specifications vary by CPU types. |
| Ethernet | 1 × Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 1×1, 2.4/5GHz Bluetooth® v5.2 * Bluetooth version may vary; refer to Wi-Fi module manufacturer's website for latest specifications. |
| USB — Rear (8 ports) | 2 × USB 10Gbps (1 × Type-A + 1 × Type-C®) 2 × USB 5Gbps (2 × Type-A) 4 × USB 2.0 (4 × Type-A) |
| USB — Front (7 ports) | 1 × USB 5Gbps connector (supports Type-C®) 1 × USB 5Gbps header (2 additional USB 5Gbps ports) 2 × USB 2.0 headers (4 additional USB 2.0 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192kHz playback Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required for 7.1 Surround Sound output. |
| Back Panel I/O | 2 × USB 10Gbps (1 × Type-A + 1 × Type-C®) 2 × USB 5Gbps (2 × Type-A) 4 × USB 2.0 (4 × Type-A) 2 × DisplayPort 1 × HDMI™ port 1 × Wi-Fi Module 1 × Realtek 2.5Gb Ethernet port 3 × Audio jacks 1 × BIOS FlashBack™ button 1 × PS/2 keyboard/mouse combo port |
| Internal I/O — Fan & Cooling | 1 × 4-pin CPU Fan header 1 × 4-pin CPU OPT Fan header 1 × 4-pin AIO Pump header 2 × 4-pin Chassis Fan headers |
| Internal I/O — Power | 1 × 24-pin Main Power connector 1 × 8-pin +12V CPU Power connector 1 × 4-pin +12V CPU Power connector |
| Internal I/O — Storage | 3 × M.2 slots (Key M) 4 × SATA 6Gb/s ports |
| Internal I/O — USB | 1 × USB 5Gbps connector (supports Type-C®) 1 × USB 5Gbps header (2 additional ports) 2 × USB 2.0 headers (4 additional ports) |
| Internal I/O — Miscellaneous | 3 × Addressable RGB Gen 2 headers 1 × Clear CMOS header 1 × COM Port header 1 × Front Panel Audio header (F_AUDIO) 1 × 10-1 pin Front Panel System header 1 × Chassis Intrusion header |
| Special Features | TUF Protection: DIGI+ VRM (DrMOS), ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot Thermal Solution: M.2 heatsink, VRM heatsink design EZ DIY: BIOS FlashBack™ button/LED, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM Aura Sync: Addressable RGB Gen 2 headers |
| Software | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+) AI Suite 3 (DIGI+ VRM, Two-Way AI Noise Cancelation) ASUS DriverHub TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60-day free trial) WinRAR (40-day free trial) UEFI BIOS: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

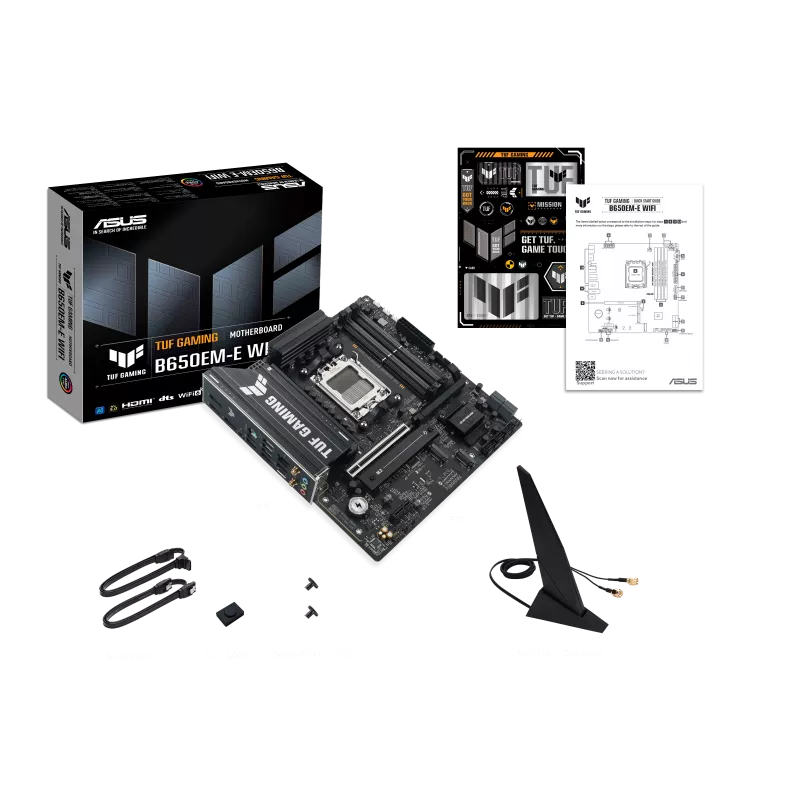

| Accessories | 2 × SATA 6Gb/s cables 1 × TUF Gaming sticker 1 × M.2 Rubber Package 1 × Screw package for M.2 SSD 1 × Quick start guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX 9.6 in. × 9.6 in. (24.4 cm × 24.4 cm) |
