ASUS ROG STRIX Z890-A GAMING WIFI Z890 LGA 1851 ATX motherboard Intel Core Ultra Series 2 Ready Advanced AI PC-ready 16+2+1+2
$299.99
| Specifications | |
|---|---|
| Model | ROG STRIX Z890-A GAMING WIFI |
| CPU | Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 × DIMM slots, Max. 256GB, DDR5 Supports up to 9066+ MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Supports DIMM Flex Supports DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. Refer to CPU/Memory Support list or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 × DisplayPort 1 × HDMI™ port 2 × Intel® Thunderbolt™ 4 ports (USB Type-C®) — supports DisplayPort and Thunderbolt™ video outputs * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. * DisplayPort 1.4 supports max. 8K@60Hz. ** HDMI 2.1 supports 4K@60Hz. *** Thunderbolt™ 4 mode supports up to 8K@60Hz ×1 with DSC or 4K@60Hz ×2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps. In DP Alt mode, supports up to UHBR20. For resolution support please check DisplayPort 2.1 specs. **** VGA resolution support depends on processors' or graphic cards' resolution. ***** While installing the operating system, please ensure your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2): 1 × PCIe 5.0 x16 slot Intel® Z890 Chipset: 1 × PCIe 4.0 x16 slot (supports x4 mode) * Refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Storage | Total: 5 × M.2 slots + 4 × SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2): M.2_1 (Key M), type 2242/2260/2280/22110 — PCIe 5.0 x4 M.2_2 (Key M), type 2280 — PCIe 4.0 x4 Intel® Z890 Chipset: M.2_3 (Key M), type 2280 — PCIe 4.0 x4 M.2_4 (Key M), type 2280/22110 — PCIe 4.0 x4 M.2_5 (Key M), type 2242/2260/2280 — PCIe 4.0 x4 & SATA 4 × SATA 6Gb/s ports Intel® RST: PCIe RAID 0/1/5/10; SATA RAID 0/1/5/10 (M.2 slot from CPU supports RAID 0/1/5 only) |
| Ethernet | 1 × Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), 2×2, supports 2.4/5/6GHz, 320MHz bandwidth, up to 5.8Gbps Bluetooth® v5.4 * Wi-Fi features may vary depending on the operating system. Windows 11 24H2 or later required for full Wi-Fi 7; Windows 11 21H2/22H2/23H2 supports Wi-Fi 6E only. Windows 10 supports Wi-Fi 6 only. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** Bluetooth version may vary; refer to Wi-Fi module manufacturer's website for latest specifications. |
| USB — Rear (10 ports) | 2 × Thunderbolt™ 4 (2 × Type-C®) 6 × USB 10Gbps (5 × Type-A + 1 × Type-C® with up to 30W PD/PPS Fast-charge) 2 × USB 5Gbps (2 × Type-A) * USB Type-C® power delivery output: max. 5V/3A. ** USB Type-C® PD/PPS Fast-charge output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2.0A. |
| USB — Front (7 ports) | 1 × USB 20Gbps connector (supports USB Type-C®) 1 × USB 5Gbps header (2 additional USB 5Gbps ports) 2 × USB 2.0 headers (4 additional USB 2.0 ports) |
| Audio | ROG SupremeFX ALC4080 7.1 Surround Sound HD Audio CODEC Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking 120 dB SNR stereo playback output; 110 dB SNR recording input Supports up to 32-Bit/384kHz playback on front panel Features: SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. Connect to the front panel audio jack or use a USB audio device for spatial audio. |
| Back Panel I/O | 2 × Thunderbolt™ 4 (2 × Type-C®) 6 × USB 10Gbps (5 × Type-A + 1 × Type-C® with up to 30W PD/PPS Fast-charge) 2 × USB 5Gbps (2 × Type-A) 1 × DisplayPort 1 × HDMI™ port 1 × Wi-Fi module 1 × Intel® 2.5Gb Ethernet port 2 × Audio jacks 1 × Optical S/PDIF out port 1 × BIOS FlashBack™ button 1 × Clear CMOS button |
| Internal I/O — Fan & Cooling | 1 × 4-pin CPU Fan header 1 × 4-pin CPU OPT Fan header 1 × 4-pin AIO Pump header 5 × 4-pin Chassis Fan headers |
| Internal I/O — Power | 1 × 24-pin Main Power connector 2 × 8-pin +12V CPU Power connectors |
| Internal I/O — Storage | 5 × M.2 slots (Key M) 4 × SATA 6Gb/s ports |
| Internal I/O — USB | 1 × USB 20Gbps connector (supports USB Type-C®) 1 × USB 5Gbps header (2 additional ports) 2 × USB 2.0 headers (4 additional ports) |
| Internal I/O — Miscellaneous | 3 × Addressable Gen 2 headers 1 × Chassis Intrusion header 1 × CPU Overvoltage jumper 1 × Front Panel Audio header (F_AUDIO) 1 × Start button 1 × 10-1 pin Front System Panel header 1 × Thermal Sensor header 1 × Thunderbolt™ (USB4®) header |
| Special Features | Extreme Engine Digi+: 5K Black Metallic Capacitors Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot Thermal Solution: M.2 heatsink backplate, M.2 heatsink EZ DIY: BIOS FlashBack™ button/LED, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM Aura Sync: Addressable Gen 2 headers |
| Software | ROG Exclusive: ROG CPU-Z, Dolby Atmos Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II, GameFirst, Power Saving) AIDA64 Extreme (60 days free trial) / HWiNFO / ASUS AI Advisor / ASUS DriverHub / ASUS GlideX / TurboV Core / USB Wattage Watcher UEFI BIOS: AI Overclocking Guide, ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, NPU Boost, FlexKey |
| BIOS | 256 Mb UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

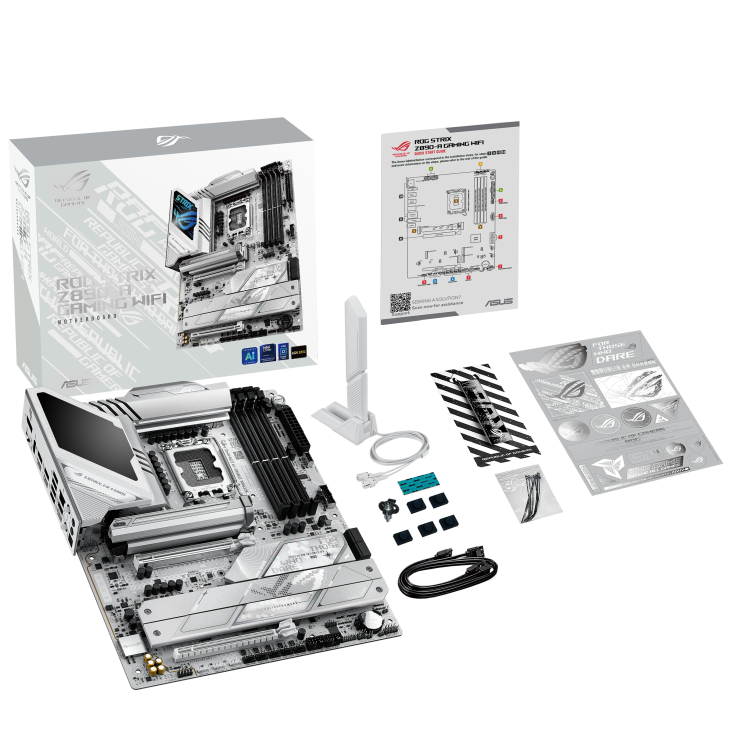

| Accessories | 2 × SATA 6Gb/s cables 1 × Thermal pad for M.2 22110 1 × ASUS WiFi Q-Antenna 1 × Cable ties package 1 × M.2 Q-Latch package 1 × ROG key chain 1 × ROG Strix stickers 5 × M.2 rubbers 1 × Quick start guide |
| Operating System | Windows® 11 (22H2 & later) |
| Form Factor | ATX 12 in. × 9.6 in. (30.5 cm × 24.4 cm) |
