ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION AMD X870E ATX motherboard DDR5 WiFi 7 4x M.2 PCIe 5.0 dual USB4
| Specifications | |
|---|---|
| Model | ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset | AMD X870E |
| Memory | 4 × DIMM slots, Max. 256GB, DDR5 Supports up to 8000+ MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Fit / DIMM Fit Pro ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate, and number of DRAM modules vary depending on the CPU and memory configuration. Refer to CPU/Memory Support list or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 × HDMI™ port 2 × USB4® (40Gbps) ports support USB Type-C® display outputs * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** HDMI 2.1 supports 4K@60Hz. *** USB4® display outputs support max. 4K@60Hz as specified in DisplayPort 1.4a. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 1 × PCIe 5.0 x16 slot (supports x16 mode) Ryzen™ 8000 Series: 1 × PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870E Chipset: 1 × PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. ** Specifications vary by CPU types. Refer to https://www.asus.com/support/download-center/ for supported peripherals. |
| Storage | Total: 4 × M.2 slots + 4 × SATA 6Gb/s ports Ryzen™ 9000 & 7000 Series: M.2_1 (Key M), type 2242/2260/2280 — PCIe 5.0 x4 M.2_2 (Key M), type 2280/22110 — PCIe 5.0 x4 Ryzen™ 8000 Series: M.2_1 (Key M), type 2242/2260/2280 — PCIe 4.0 x4/x2 M.2_2 (Key M), type 2280/22110 — Not supported AMD X870E Chipset: M.2_3 (Key M), type 2280 — PCIe 4.0 x4 M.2_4 (Key M), type 2280 — PCIe 4.0 x4 4 × SATA 6Gb/s ports * M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied, PCIEX16(G5) will run at x8 only. ** M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors. |
| RAID Support | AMD RAIDXpert2: Ryzen™ 9000 — RAID 0/1/5/10; Ryzen™ 8000 — RAID 0/1; Ryzen™ 7000 — RAID 0/1/10 * Specifications vary by CPU types. |
| Ethernet | 1 × Realtek 5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (MediaTek MT7925), 2×2 (802.11be) Supports 2.4/5/6GHz frequency band, 160MHz bandwidth Bluetooth® v5.4 * Wi-Fi features may vary by OS. Windows 11 24H2 or later required for full Wi-Fi 7 functions; Windows 11 21H2/22H2/23H2 supports Wi-Fi 6E only. No driver available for Windows 10. ** Wi-Fi 6GHz frequency band regulatory may vary between countries. *** Bluetooth version may vary; refer to Wi-Fi module manufacturer's website for latest specifications. |
| USB — Rear (14 ports) | 2 × USB4® 40Gbps (2 × Type-C®) 4 × USB 10Gbps (3 × Type-A + 1 × Type-C® with up to 30W PD/PPS Fast-charge) 6 × USB 5Gbps (6 × Type-A) 2 × USB 2.0 (2 × Type-A) * USB Type-C® power delivery output: max. 5V/3A. ** USB Type-C® Fast-charge power delivery: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2.0A. |
| USB — Front (7 ports) | 1 × USB 20Gbps connector (supports Type-C®) 1 × USB 5Gbps header (2 additional USB 5Gbps ports) 2 × USB 2.0 headers (4 additional USB 2.0 ports) |
| Audio | Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC Impedance sense for front and rear headphone outputs Internal audio amplifier for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking 120 dB SNR stereo playback output; 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192kHz playback Features: SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover * The LINE OUT port on the rear panel does not support spatial audio. For spatial audio, connect to the front panel audio jack or use a USB audio device. |
| Back Panel I/O | 2 × USB4® 40Gbps (2 × Type-C®) 4 × USB 10Gbps (3 × Type-A + 1 × Type-C® with up to 30W PD/PPS Fast-charge) 6 × USB 5Gbps (6 × Type-A) 2 × USB 2.0 (2 × Type-A) 1 × HDMI™ port 1 × Wi-Fi module 1 × Realtek 5Gb Ethernet 2 × Audio jacks 1 × Optical S/PDIF out port 1 × BIOS FlashBack™ button 1 × Clear CMOS button |
| Internal I/O — Fan & Cooling | 1 × 4-pin CPU Fan header 1 × 4-pin CPU OPT Fan header 1 × 4-pin AIO Pump header 5 × 4-pin Chassis Fan headers |
| Internal I/O — Power | 1 × 24-pin Main Power connector 2 × 8-pin +12V CPU Power connectors |
| Internal I/O — Storage | 4 × M.2 slots (Key M) 4 × SATA 6Gb/s ports |
| Internal I/O — USB | 1 × USB 20Gbps connector (supports Type-C®) 1 × USB 5Gbps header (2 additional ports) 2 × USB 2.0 headers (4 additional ports) |
| Internal I/O — Miscellaneous | 3 × Addressable RGB Gen 2 headers 1 × Chassis Intrusion header 1 × CPU Over Voltage jumper 1 × Front Panel Audio header (F_AUDIO) 1 × Start button 1 × 10-1 pin Front Panel System header 1 × Thermal Sensor header |
| Special Features | Extreme Engine Digi+: 5K Black metallic capacitors Q-Design: M.2 Q-Latch, M.2 Q-Release, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot Thermal Solution: M.2 heatsink, VRM heatsink design EZ DIY: BIOS FlashBack™ button/LED, Clear CMOS button, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM Aura Sync: Addressable RGB Gen 2 headers |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

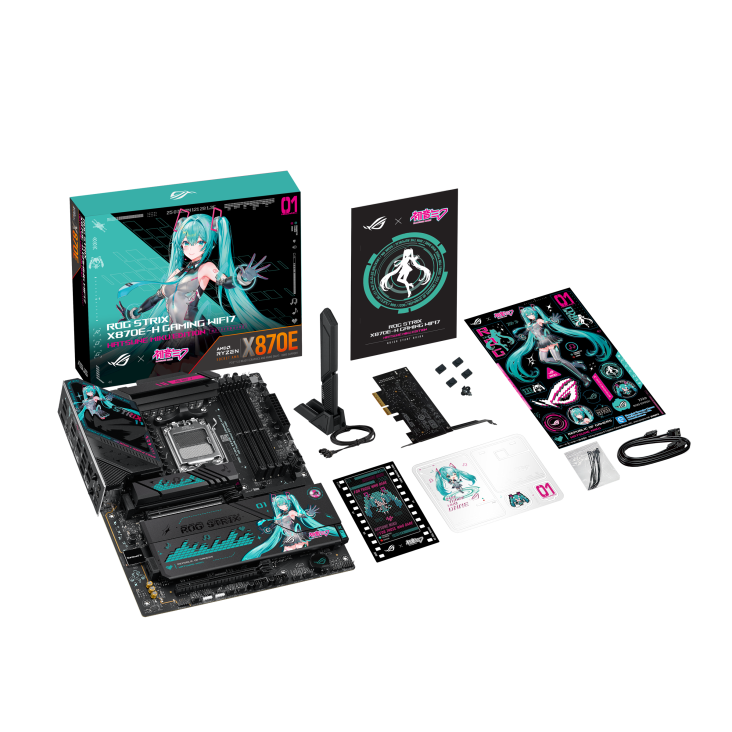

| Accessories | 2 × SATA 6Gb/s cables 1 × ASUS WiFi Q-Antenna 1 × Cable ties package 1 × M.2 Q-Latch package 4 × M.2 rubbers 1 × ASUS PCIe to Front USB Card (2 × USB 5Gbps Type-A + 1 × USB 10Gbps Type-C) 1 × Phone Stand — Hatsune Miku Edition 1 × Thank You Card — Hatsune Miku Edition 1 × Sticker — Hatsune Miku Edition 1 × Quick start guide |
| Operating System | Windows® 11 |
| Form Factor | ATX 12 in. × 9.6 in. (30.5 cm × 24.4 cm) |
| Specifications | |
| Model | ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Fit / DIMM Fit Pro ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)* AMD Ryzen™ 8000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) M.2_2 slot (Key M), type 2280/22110 (Not supports)** AMD X870E Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only. ** M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors. |
| RAID Support | AMD RAIDXpert2 Technology* Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types. |
| Ethernet | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth |
Bluetooth
Wi-Fi 7 (MediaTek MT7925)
2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB |
Rear USB (Total 14 ports) |
| Audio |
Realtek ALC1220P 7.1 Surround Sound |
| Back Panel I/O Ports |
2 x USB4® (40Gbps) ports(2 x USB Type-C®) |
| Internal I/O Connectors |
Fan and Cooling Related |
| Special Features |
Extreme Engine Digi+ |
| Software Features |
ROG Exclusive Software |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Accessories |
Cables |
| Operating System |
Windows 11 |
| Form Factor |
ATX Form Factor |
