Asus ROG STRIX X870-I GAMING WIFI ITX AM5 Motherboard Ryzen 9000/7000 Socket AM5 LGA 17184 2x DDR5 DIMM 1x PCIe 5.0 x16
Model #: ROG STRIX X870-I GAMING WIFI
Item #: MOTASUX87IGR
(view)
x
- Store inventory
-
837 Howard Street, CA 94103
415-495-58881 -
2727 S. El Camino Real, CA 94403
650-345-58882 -
510 Lawrence Expressway, Suite 107, CA 94085
650-964-58882 -
3777 Stevens Creek Blvd., CA 95051
408-248-58883 -
5990 Mowry Ave., CA 94560
510-792-58882 -
Disclaimer: Inventory accuracy is not guaranteed. We can do transfers between stores or special order for your convenience.
Asus ROG STRIX X870-I GAMING WIFI ITX AM5 Motherboard Ryzen 9000/7000 Socket AM5 LGA 17184 2x DDR5 DIMM 1x PCIe 5.0 x16
$429.99
| Specifications | |
|---|---|
| Model | ROG STRIX X870-I GAMING WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset | AMD X870 |
| Memory | 2 × DIMM slots, Max. 128GB, DDR5 Supports up to 8400+ MT/s (OC) with Ryzen™ 9000 Series Supports up to 8600+ MT/s (OC) with Ryzen™ 8000 Series Supports up to 8000+ MT/s (OC) with Ryzen™ 7000 Series ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate, and number of DRAM modules vary depending on CPU and memory configuration. Refer to CPU/Memory Support list or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 × HDMI™ port 2 × USB4® (40Gbps) ports support USB Type-C® display outputs * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** HDMI 2.1 supports 4K@60Hz. *** USB4® display outputs support max. 4K@60Hz as specified in DisplayPort 1.4a. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 1 × PCIe 5.0 x16 slot Ryzen™ 8000 Series: 1 × PCIe 4.0 x16 slot (supports x8/x4 mode) * Specifications vary by CPU types. Refer to https://www.asus.com/support/ for supported peripherals. |
| Storage | Total: 2 × M.2 slots + 2 × SATA 6Gb/s ports Ryzen™ 9000 & 7000 Series: M.2_1 (Key M), type 2280 — PCIe 5.0 x4 Ryzen™ 8000 Series: M.2_1 (Key M), type 2280 — PCIe 4.0 x4 AMD X870 Chipset: M.2_2 (Key M), type 2242/2260/2280 — PCIe 4.0 x4 2 × SATA 6Gb/s ports (requires ROG FPS Card installation) AMD RAIDXpert2: PCIe RAID 0/1/10; SATA RAID 0/1 |
| Ethernet | 1 × Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), 2×2, supports 2.4/5/6GHz, 320MHz bandwidth, up to 6.5Gbps Bluetooth® v5.4 * Wi-Fi features may vary by OS. Windows 11 24H2 or later required for full Wi-Fi 7; Windows 11 21H2/22H2/23H2 supports Wi-Fi 6E only. No driver available for Windows 10. ** Wi-Fi 6GHz frequency band regulatory may vary between countries. *** Bluetooth version may vary; refer to Wi-Fi module manufacturer's website for latest specifications. |
| USB — Rear (10 ports) | 2 × USB4® 40Gbps (2 × Type-C®) 5 × USB 10Gbps (4 × Type-A + 1 × Type-C®) 3 × USB 2.0 (3 × Type-A) * USB Type-C® power delivery output: max. 5V/3A. |
| USB — Front (3 ports) | 1 × USB 10Gbps connector (supports Type-C®) 1 × USB 5Gbps header (2 additional USB 5Gbps ports) |
| USB — ROG STRIX HIVE II (2 ports) | 2 × USB 10Gbps (1 × Type-A + 1 × Type-C®) |
| USB — ROG FPS Card (3 ports) | 2 × USB 2.0 headers (3 additional USB 2.0 ports) |
| Audio | Via ROG STRIX HIVE II: ROG Hyper-Grounding Technology ESS® SABRE9260Q DAC Silver-plated audio jacks Dedicated audio PCB layers 1 × Headphone jack with mic in |
| Back Panel I/O | 2 × USB4® 40Gbps (2 × Type-C®) 5 × USB 10Gbps (4 × Type-A + 1 × Type-C®, 1 port supports ROG STRIX HIVE II) 3 × USB 2.0 (2 × Type-A) 1 × HDMI™ port 1 × Wi-Fi module 1 × Intel® 2.5Gb Ethernet port 1 × BIOS FlashBack™ button 1 × Clear CMOS button |
| Internal I/O — Fan & Cooling | 1 × 4-pin CPU Fan header 1 × 4-pin AIO Pump header 1 × 4-pin Chassis Fan header |
| Internal I/O — Power | 1 × 24-pin Main Power connector 1 × 8-pin +12V CPU Power connector |
| Internal I/O — Storage | 2 × M.2 slots (Key M) |
| Internal I/O — USB | 1 × USB 10Gbps connector (supports Type-C®) 1 × USB 5Gbps header (2 additional ports) |
| Internal I/O — Miscellaneous | 2 × Addressable Gen 2 headers 1 × 2-pin Power Button header 1 × Thermal Sensor header 2 × USB Type-C® connectors to install ROG FPS Card 1 × CPU Over Voltage jumper 1 × Front Panel header 1 × Alteration PCIe Mode switch ROG FPS Card: 2 × SATA 6Gb/s ports, 2 × USB 2.0 headers (3 additional USB 2.0 ports) |
| Special Features | Q-Design: M.2 Q-Latch, PCIe Slot Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot Thermal Solution: M.2 heatsink, Aluminum backplate EZ DIY: BIOS FlashBack™ button/LED, Clear CMOS button, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM Aura Sync: Addressable Gen 2 headers ROG STRIX HIVE II: 1 × USB Type-C® connection to motherboard 2 × USB 10Gbps (1 × Type-A + 1 × Type-C®) 1 × Headphone jack with mic in 1 × Power button 1 × FlexKey button 1 × Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

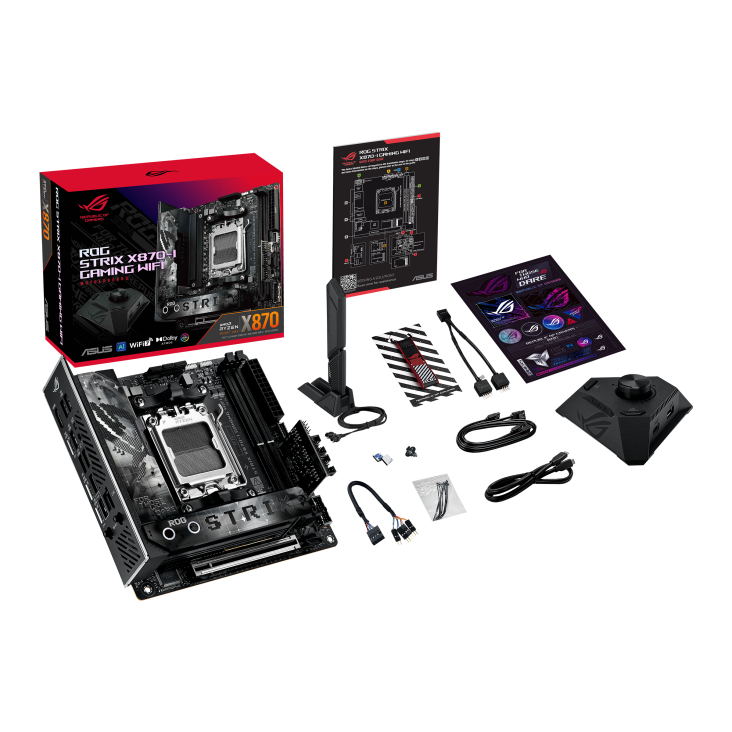

| Accessories | 1 × Panel cable 1 × ROG USB 2.0 splitter cable 2 × SATA 6Gb/s cables 1 × ROG FPS Card 1 × ROG STRIX HIVE II 1 × USB Type-C® power connection cable (for HIVE II) 1 × ASUS WiFi Q-Antenna 1 × Cable ties package 1 × M.2 Q-Latch package 1 × M.2 rubber package 1 × ROG key chain 1 × ROG Strix stickers 1 × Quick start guide |
| Operating System | Windows® 11 64-bit |
| Form Factor | Mini-ITX 6.7 in. × 6.7 in. (17 cm × 17 cm) |
