ASUS ProArt X870E-CREATOR WIFI ATX AM5 Motherboard Ryzen 9000/7000 Socket AM5 LGA 17184 4x DDR5 DIMM Dual Ethernet & WiFi 7
$539.99
| Specifications | |
|---|---|
| Model | ProArt X870E-CREATOR WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * Refer to www.asus.com for CPU support list. |
| Chipset | AMD X870E |
| Memory | 4 × DIMM slots, Max. 256GB, DDR5 Supports up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Supported memory types, data rate, and number of DRAM modules vary depending on the CPU and memory configuration. Refer to www.asus.com for memory support list. *** Non-ECC, Un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 × HDMI™ port 2 × USB4® (40Gbps) ports support USB Type-C® display outputs * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** HDMI 2.1 supports 4K@60Hz. *** USB4® display outputs support max. 8K@60Hz as specified in DisplayPort 1.4. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 2 × PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes) Ryzen™ 8700/8600/8400 Series: 1 × PCIe 4.0 x16 slot (PCIEX16(G5)_1 only, total bandwidth x8; PCIEX16(G5)_2 disabled) Ryzen™ 8500/8300 Series: 1 × PCIe 4.0 x16 slot (PCIEX16(G5)_1 only, total bandwidth x4; PCIEX16(G5)_2 disabled) AMD X870E Chipset: 1 × PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. ** When using both PCIEX16(G5)_1 and PCIEX16(G5)_2, they run at x8 each. *** PCIEX16(G5)_2 shares bandwidth with M.2_2. When M.2_2 is enabled, PCIEX16(G5)_1 runs x8 and PCIEX16(G5)_2 runs x4. |
| Storage | Total: 4 × M.2 slots + 4 × SATA 6Gb/s ports Ryzen™ 9000 & 7000 Series: M.2_1 (Key M), type 2242/2260/2280 — PCIe 5.0 x4 M.2_2 (Key M), type 2242/2260/2280 — PCIe 5.0 x4 Ryzen™ 8000 Series: M.2_1 (Key M), type 2242/2260/2280 — PCIe 4.0 x4 M.2_2 — Not supported AMD X870E Chipset: M.2_3 (Key M), type 2242/2260/2280 — PCIe 4.0 x4 M.2_4 (Key M), type 2242/2260/2280/22110 — PCIe 4.0 x4 4 × SATA 6Gb/s ports AMD RAIDXpert2: Ryzen™ 9000 — PCIe RAID 0/1/5/10; Ryzen™ 8000 — PCIe RAID 0/1; Ryzen™ 7000 — PCIe RAID 0/1/10 X870/B850/X670/B650/A620 Chipset: SATA RAID 0/1/10 * PCIEX16(G5)_2 shares bandwidth with M.2_2. |
| Ethernet | 1 × Marvell® AQtion 10Gb Ethernet 1 × Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927), 2×2 (802.11be) Supports 2.4/5/6GHz frequency band, 320MHz bandwidth Bluetooth® v5.4 * Actual Wi-Fi module may vary; refer to product label for details. ** Wi-Fi features may vary by OS. Windows 11 24H2 or later required for full Wi-Fi 7; Windows 11 21H2/22H2/23H2 supports Wi-Fi 6E only. No driver available for Windows 10. *** Wi-Fi 6GHz frequency band regulatory may vary between countries. **** Bluetooth version may vary; refer to Wi-Fi module manufacturer's website for latest specifications. |
| USB — Rear (11 ports) | 2 × USB4® 40Gbps (2 × Type-C®) 1 × USB 20Gbps (1 × Type-C®) 7 × USB 10Gbps (7 × Type-A) 1 × USB 2.0 (1 × Type-A) * USB Type-C® power delivery output: max. 5V/3.0A. |
| USB — Front (9 ports) | 1 × USB 20Gbps connector (supports Type-C® with up to 30W PD/QC4+) 1 × USB 5Gbps header (2 additional USB 5Gbps ports) 3 × USB 2.0 headers (6 additional USB 2.0 ports) ** USB Type-C® Fast-charge: 5V/9V max. 3.0A, 12V max. 2.5A, 15V max. 2.0A. |
| Audio | Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC Impedance sense for front and rear headphone outputs Internal audio amplifier for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking 120 dB SNR stereo playback output; 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192kHz playback Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Unique de-pop circuit * Due to HDA bandwidth limitations, 32-Bit/192kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required for 7.1 Surround Sound output. |
| Back Panel I/O | 2 × USB4® 40Gbps (2 × Type-C®) 1 × USB 20Gbps (1 × Type-C®) 7 × USB 10Gbps (7 × Type-A) 1 × USB 2.0 (1 × Type-A) 1 × DisplayPort (Input only) 1 × HDMI™ port 1 × Wi-Fi module 1 × Marvell® AQtion 10Gb Ethernet 1 × Intel® 2.5Gb Ethernet 3 × Audio jacks 1 × BIOS FlashBack™ button 1 × Clear CMOS button |
| Internal I/O — Fan & Cooling | 1 × 4-pin CPU Fan header 1 × 4-pin CPU OPT Fan header 1 × 4-pin AIO Pump header 5 × 4-pin Chassis Fan headers |
| Internal I/O — Power | 1 × 24-pin Main Power connector 2 × 8-pin +12V CPU Power connectors |
| Internal I/O — Storage | 4 × M.2 slots (Key M) 4 × SATA 6Gb/s ports |
| Internal I/O — USB | 1 × USB 20Gbps connector (supports Type-C® with up to 30W PD/QC4+) 1 × USB 5Gbps header (2 additional ports) 3 × USB 2.0 headers (6 additional ports) |
| Internal I/O — Miscellaneous | 3 × Addressable Gen 2 headers 1 × Chassis Intrusion header 1 × COM Port header 1 × CPU Over Voltage jumper 1 × Front Panel Audio header (F_AUDIO) 1 × 10-1 pin System Panel header 1 × Thermal Sensor header |
| Special Features | 5X Protection III: DIGI+ VRM, Enhanced DRAM Overcurrent Protection, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Connector, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot Thermal Solution: M.2 heatsink backplate, M.2 heatsinks, VRM heatsink design EZ DIY: BIOS FlashBack™ button/LED, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM Aura Sync: Addressable Gen 2 headers Bespoke Design & Business Features: 24/7 Reliability, Overcurrent Protection Front Panel USB 20Gbps QC4+: up to 30W, PD3.0 compatible (5V/9V max. 3.0A, 12V max. 2.5A, 15V max. 2.0A) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE IT Management: ASUS Control Center Express (ACCE) |

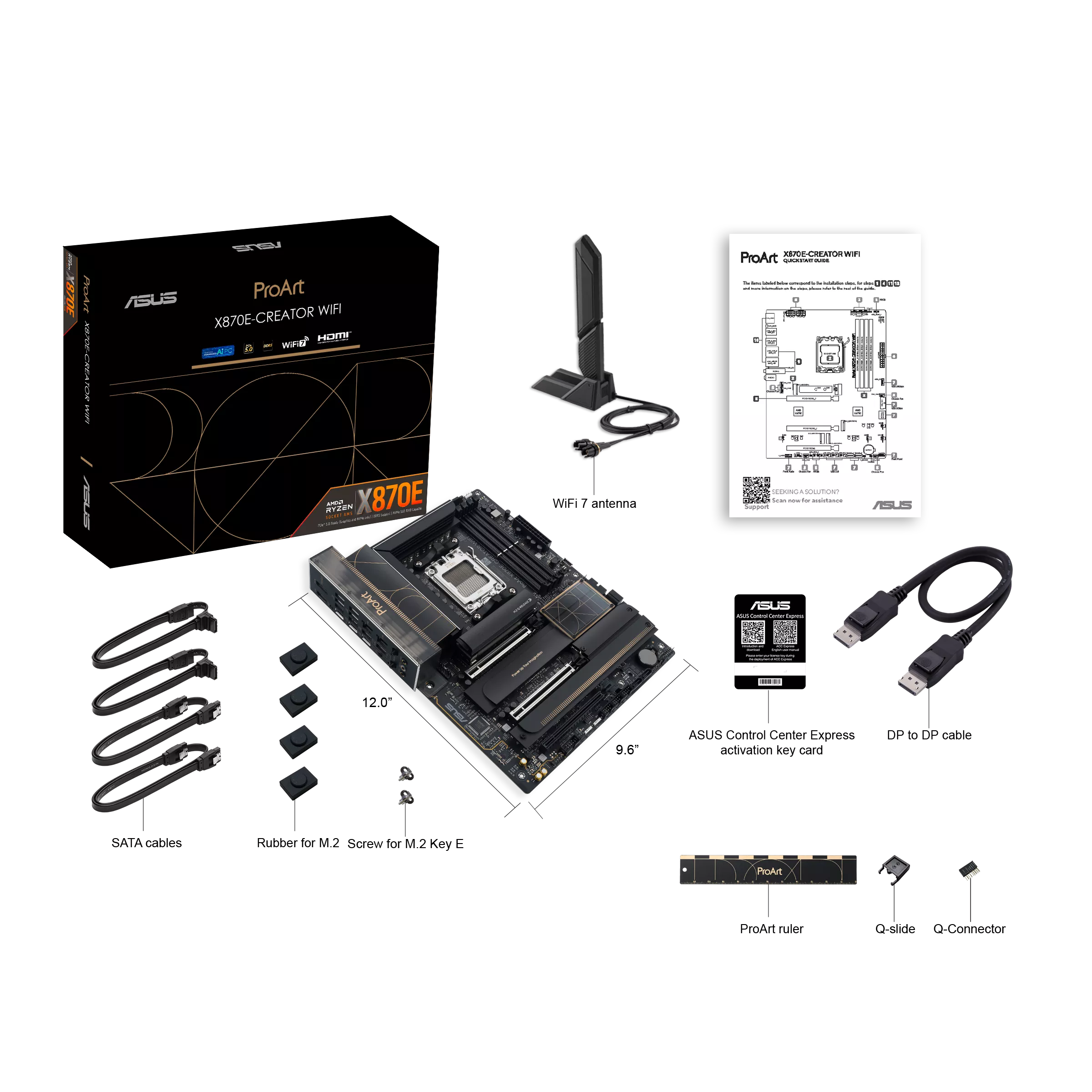

| Accessories | 1 × DisplayPort cable 4 × SATA 6Gb/s cables 1 × Thermal pad for M.2 22110 1 × ASUS WiFi Q-Antenna 1 × Q-connector 1 × M.2 Q-Latch package 1 × M.2 Q-Latch Q-Slide package for M.2 backplate 2 × Rubber Packages for M.2 1 × ProArt ruler 1 × Quick start guide 1 × ACC Express Activation Key Card |
| Operating System | Windows® 11 |
| Form Factor | ATX 12 in. × 9.6 in. (30.5 cm × 24.4 cm) |
