ASUS ESC8000A-E13P-32W 4U AMD PLX Server rackmount Barebone 2x Socket SP5 Sock 24x DDR5 8x hot-swap 2.5in bays 2x 10GbE 3200W PSU
Model #: ESC8000A-E13P-32W
Item #: SYSASU813P3R
(view)
x
- Store inventory
-
837 Howard Street, CA 94103
415-495-58882 -
2727 S. El Camino Real, CA 94403
650-345-58880 -
510 Lawrence Expressway, Suite 107, CA 94085
650-964-58880 -
3777 Stevens Creek Blvd., CA 95051
408-248-58880 -
5990 Mowry Ave., CA 94560
510-792-58880 -
Disclaimer: Inventory accuracy is not guaranteed. We can do transfers between stores or special order for your convenience.
ASUS ESC8000A-E13P-32W 4U AMD PLX Server rackmount Barebone 2x Socket SP5 Sock 24x DDR5 8x hot-swap 2.5in bays 2x 10GbE 3200W PSU
$10,999.99
We Build AI Servers and Workstations
Planning an AI deployment or upgrading your compute stack? Our team can help you configure and assemble a system tailored to your performance goals, budget, and deployment environment — from desk-side AI workstations to rack-ready enterprise servers.
Restricted return policy on Servers.
Please see our Return Policy for more info.
Please see our Return Policy for more info.

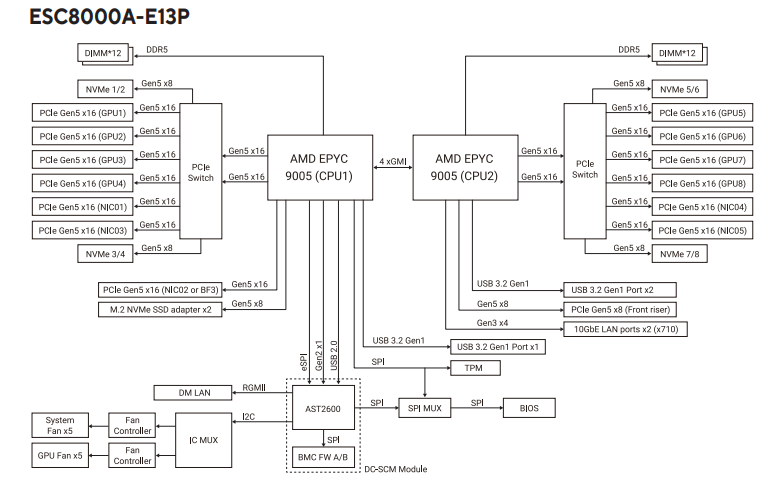

| Specifications — ESC8000A-E13P | |
|---|---|
| Model Name | ESC8000A-E13P (ESC8000A-E13 series) |
| Motherboard | K15PG-D24 |
| Processor Support | 2 × Socket SP5 (LGA 6096) for AMD EPYC™ 9005/9004 series processors * TDP support varies by configuration |
| Core Logic | System on Chip (SoC) |
| Memory — Total Slots | 24 (12 channels per CPU, 12 DIMMs per CPU) |
| Memory — Capacity | Maximum up to 3TB |
| Memory — Type | DDR5 6400/5600 RDIMM * Refer to ASUS server AVL for the latest update |
| Memory — Size | 128GB, 96GB, 64GB, 32GB, 16GB * Refer to ASUS server AVL for the latest update |
| Expansion Slots — Total | Up to 14 slots |
| Expansion Slots — PCIe Type | 8 × PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FHFL) 1 × PCIe x16 for NIC/BlueField-3 cards (Gen5 x16 link, FHHL) 4 × PCIe x16 for NIC cards (Gen5 x16 link, FHHL) 1 × PCIe x16 (Gen5 x8 link, FHHL) |
| M.2 | 2 × M.2 sockets (Gen5 x4 link, up to 22110) for up to 2 NVMe devices |
| Storage Bays | 8 × 2.5" front hot-swap storage bays |
| NVMe Support | Up to 8 NVMe devices |
| Storage Connectors | Backplane: 4 × MCIO connectors (x8 link) for NVMe devices Backplane: 2 × SLIMSAS connectors (x4 link) for HBA cards only PCIe switch: 4 × MCIO connectors (x8 link) for NVMe devices |
| Default Cables | 4 × Backplane MCIO cables |
| Networking | 1 × Dual Port Intel® X710-AT2 10GbE LAN controller 1 × Management port |
| Onboard Graphics | Aspeed AST2600 64MB (Mini DisplayPort) |
| Graphics Card Support | Up to 8 dual-slot GPU cards * Supports 12VHPWR power connectors by default |
| Front I/O Ports | 1 × Mini DisplayPort 2 × USB 5Gbps ports |
| Rear I/O Ports | 1 × USB 5Gbps port 2 × RJ-45 LAN ports 1 × RJ-45 Management LAN port |
| Switch / LEDs — Front | 1 × Power switch/LED 1 × Location switch/LED 1 × Message LED 1 × Clear CMOS switch 1 × Reset switch 2 × M.2 LEDs 2 × LAN LEDs 1 × Q-Code/Port 80 LED |
| Switch / LEDs — Rear | 1 × Power switch/LED 1 × Location switch/LED 1 × Message LED |
| OS Support | Windows® Server, RedHat® Enterprise Linux, SuSE® Linux Enterprise Server, CentOS, Ubuntu, VMware * Refer to https://servers.asus.com/support/os for the latest supported OS list |
| Management Solutions | Hardware (out-of-band): Onboard ASMB12-iKVM Software: ASUS Control Center |
| Regulatory Compliance | BSMI, CB, CE, FCC (Class A), RCM, VCCI |
| Dimensions (H × W × D) | 800mm × 439.5mm × 175mm / 31.5" × 17.3" × 6.9" (4U) |
| Weight | Net: 42 kg Gross: 44.23 kg |
| Fans | 5 × 8080 tool-less hot-swappable system fan modules 5 × 8080 tool-less hot-swappable GPU fan modules |
| Power Supply | 3+1 redundant 3200W 80 PLUS Titanium 220–240 Vac, 16A (×4) 50/60Hz |
| Environment | Operating temperature: 10°C ~ 35°C Non-operating temperature: -40°C ~ 60°C Non-operating humidity: 20% ~ 95% (Non-condensing) * Specifications are subject to change without notice. |
