MSI PRO X670-P WIFI ATX Motherboard AMD Ryzen 7000 Socket AM5 LGA1718 4x DDR5 DIMM Slots 128GB Max Supported

$219.99



Specifications

Chipset

AMD X670

CPU

Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5

Memory

4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6600+(OC)/6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6600+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

Onboard Graphics



1x HDMI™
1x DisplayPort
Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*

1x Display Port
Supports DP1.4, maximum resolution of 4K 60Hz*

1x Type-C DisplayPort
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slot



3x PCI-E x16 slot
Supports x16/x4/x2
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 PCIe 4.0 supports up to x2 (From Chipset)

Storage

4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
*SATA_A1 & SATA_A2 do not support RAID function.

USB

4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Realtek® RTL8125BG 2.5G LAN

Wireless/Bluetooth

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Audio

Realtek® ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

Internal I/O





1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C

LED Feature

4x EZ Debug LED

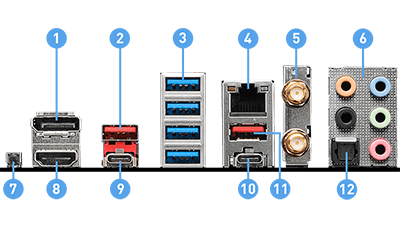

Back Panel Ports

  1. DisplayPort

  2. USB 3.2 Gen 2 10Gbps (Type-A)

  3. USB 3.2 Gen 1 5Gbps (Type-A)

  4. 2.5G LAN

  5. Wi-Fi / Bluetooth

  6. Audio connectors

  7. Flash BIOS Button

  8. HDMI™

  9. USB 3.2 Gen 2 10Gbps (Type-C Display port)

  10. USB 3.2 Gen 2x2 20Gbps (Type-C)

  11. USB 3.2 Gen 2 10Gbps (Type-A)

  12. S/PDIF-OUT

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Dimension

ATX
243.84mmx304.8mm

Box Content

European Union Regulatory Notice

Quick Installation Guide

3x M.2 Clips

2x SATA Cables

M.2 Plate Screw

Wi-Fi Antenna

I/O Shield
