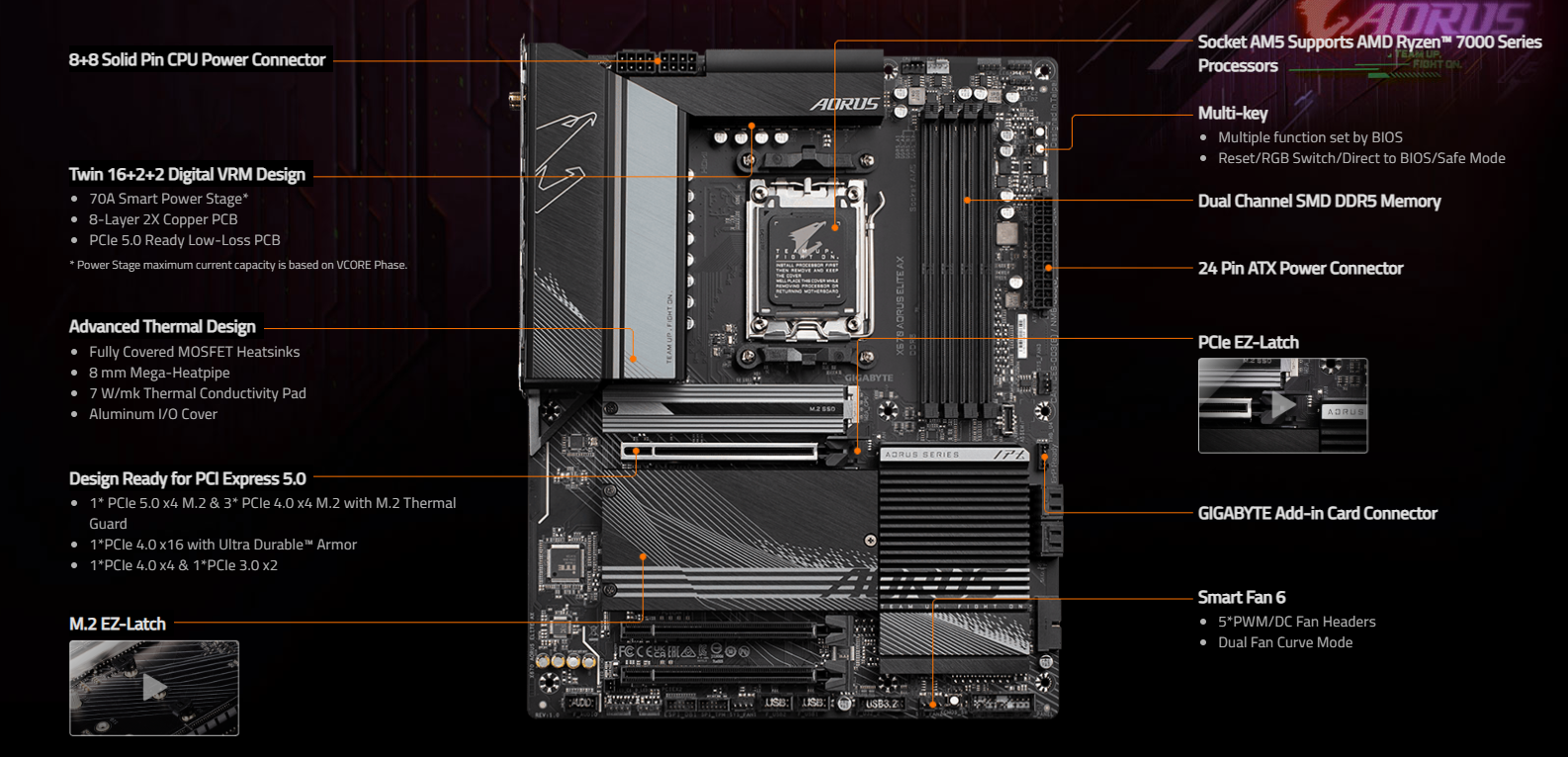

Gigabyte X670 AORUS ELITE AX ATX Motherboard Ryzen 7000 Socket AM5 LGA1718 4 x DDR5 DIMM Slots Max 128GB Supported

Specifications

CPU

AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

(Please refer "CPU Support List" for more information.)

Chipset

AMD X670

Memory

• Support for DDR5 6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MHz memory modules

• 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

• Dual channel memory architecture

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  * Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

Audio

• Realtek^® Audio CODEC

• High Definition Audio

• 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

• Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

AMD Wi-Fi 6E RZ616 (MT7922A22M)

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

• BLUETOOTH 5.2

• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

Wireless & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries.

CPU:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

CPU:

• 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0^(Note) x4/x2 SSD support) (M2A_CPU)

  (Note) Actual support may vary by CPU.

• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

• 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)

• 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

• 2 x USB 3.2 Gen 1 ports on the back panel

CPU + USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports on the back panel

Chipset:

• 2 x USB Type-C^® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)

• 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 2 x 8-pin ATX 12V power connectors

• 1 x CPU fan header

• 1 x water cooling CPU fan header

• 3 x system fan headers

• 1 x CPU cooler LED strip/RGB LED strip header

• 2 x addressable LED strip headers

• 2 x RGB LED strip headers

• 4 x SATA 6Gb/s connectors

• 4 x M.2 Socket 3 connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB Type-C^® header, with USB 3.2 Gen 2x2 support

• 2 x USB 3.2 Gen 1 headers

• 2 x USB 2.0/1.1 headers

• 1 x THB_U4 add-in card connector

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

• 1 x power button

• 1 x reset button

• 1 x Clear CMOS button

• 1 x reset jumper

• 1 x Clear CMOS jumper

• 1 x Q-Flash Plus button

• 2 x SMA antenna connectors (2T2R)

• 1 x HDMI 2.0 port

• 6 x USB 3.2 Gen 1 ports

• 4 x USB 2.0/1.1 ports

• 2 x USB 3.2 Gen 2 Type-A ports (red)

• 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support

• 1 x RJ-45 port

• 3 x audio jacks

• iTE^® I/O Controller Chip

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Fan fail warning

• Fan speed control

  * Whether the fan speed control function is supported will depend on the fan you install.

BIOS

• 1 x 256 Mbit flash

• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for GIGABYTE Control Center (GCC)

  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

• Support for Q-Flash

• Support for Q-Flash Plus

• Support for Smart Backup

• Norton^® Internet Security (OEM version)

• LAN bandwidth management software

• Support for Windows 11 64-bit

• Support for Windows 10 64-bit

• ATX Form Factor; 30.5cm x 24.4cm
